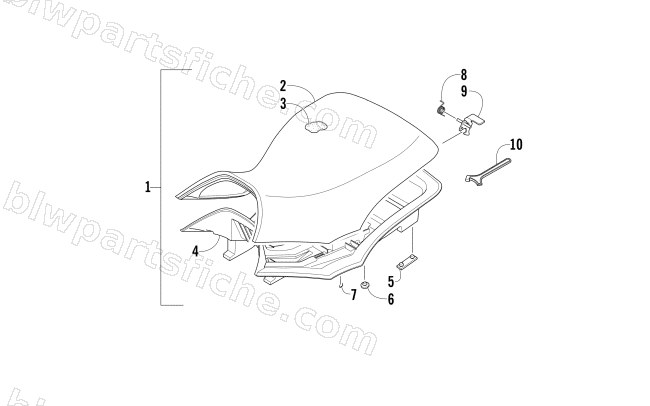

SEAT ASSEMBLY
2014 700 DIESEL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4506-557 | SEAT,ASSEMBLY (H1) | 1 | $324.95 | |
| 2 | 1506-209 | COVER, SEAT | 1 | $129.95 | |
| 3 | 0517-119 | FOAM,SEAT-MOLDED- .44R @ 3.0 ILD 48-53 | 1 | $133.95 | |
| 4 | 2416-826 | BASE,SEAT (H1) | 1 | $66.95 | |
| 5 | 0406-879 | BUMPER, SEAT | 1 | $3.71 | |
| 6 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 7 | 0624-263 | STAPLE,S.S. 3/8"PKG OF 1,250 ARROW | 1 | $133.95 | |
| 8 | 1406-592 | SPRING,LATCH | 1 | $1.78 | |
| 9 | 1506-156 | LATCH,SEAT-WELDMENT | 1 | $30.95 | |
| 10 | 0441-587 | WRENCH,SPANNER-66MM | 1 | $4.95 |
