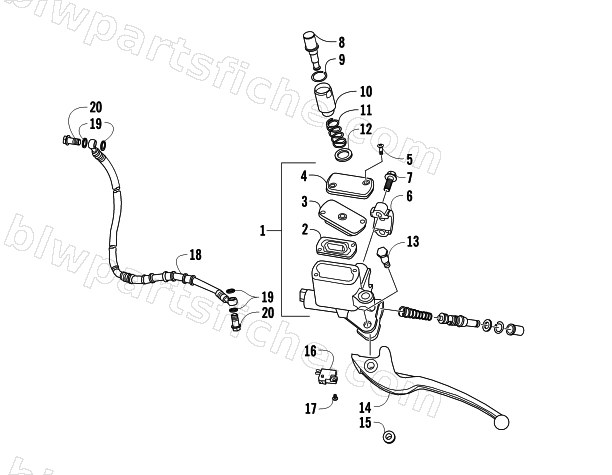

2014 Arctic Cat 90 2X4 UTILITY — HYDRAULIC HAND BRAKE ASSEMBLY
2014 90 2X4 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-982 | CYLINDER SET RR MASTER | 1 | $220.95 | |
| 2 | 3305-309 | DIAPHRAGM | 1 | $20.63 | |
| 3 | 3306-225 | PLATE DIAPHRAGM | 1 | $5.65 | |
| 4 | 3303-174 | CAP MASTER CYLINDER | 1 | $13.73 | |
| 5 | 3303-318 | SCREW FLAT 4*12 | 1 | $1.78 | |
| 6 | 3305-983 | HOLDER M/C | 1 | $10.97 | |
| 7 | 3305-297 | BOLT SOCKET SPECIAL 6*23 | 1 | $2.61 | |
| 8 | 3306-841 | BUTTON PARKING | 1 | $15.11 | |
| 9 | 3305-992 | CLIP | 1 | $1.92 | |
| 10 | 3305-991 | COVER PARING | 1 | $17.87 | |
| 11 | 3305-990 | SPRING RETURN | 1 | $2.61 | |
| 12 | 3305-989 | WASHER SPRING | 1 | $2.06 | |
| 13 | 3303-254 | BOLT HANDLE LEVER **(0) C.98.04.02 | 1 | $1.09 | |
| 14 | 3306-207 | LEVER L STRG HANDLE | 1 | $33.95 | |
| 15 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 16 | 3303-141 | SW ASSY RR STOP | 1 | $20.63 | |
| 17 | 3303-321 | SCREW WASHER 4*12 | 1 | $0.81 | |
| 18 | 3305-278 | HOSE ASSY RR BRAKE | 1 | $122.95 | |
| 19 | 3303-284 | WASHER OIL BOLT **(1) C.98.06.01. | 1 | $1.23 | |
| 20 | 3303-257 | R/B 3307-067 | 1 | $5.95 |
