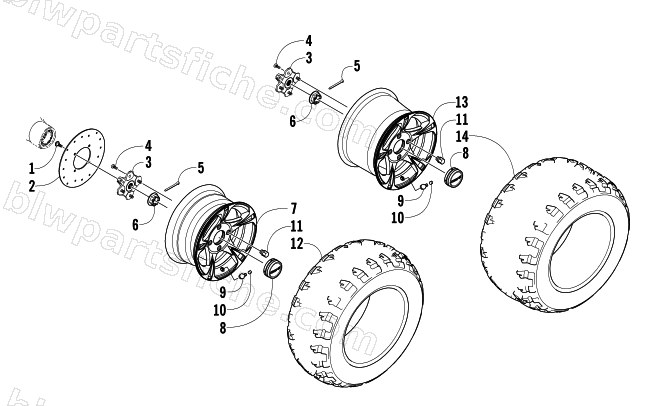

WHEEL AND TIRE ASSEMBLY
2014 PROWLER 500 HDX XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 2 | 1436-418 | KIT,BRAKE DISC (1402-455) | 1 | $56.95 | |
| 3 | 1502-433 | HUB - ASSEMBLY | 1 | $180.95 | |
| 3 | 1502-435 | HUB - ASSEMBLY | 1 | $180.95 | |
| 4 | 0402-974 | STUD,WHEEL-M10X1.25 (Z&C) | 1 | $3.16 | |
| 5 | 0423-407 | PIN,COTTER-1/8X1-1/2 | 1 | $0.40 | |
| 6 | 0423-607 | NUT,CASTLE FLANGE-M22 X 1.5 | 1 | $6.20 | |
| 7 | 2402-070 | WHEEL,FRONT-ALUMINUM (14X6.5) | 1 | $225.95 | |
| 8 | 2402-084 | CAP,WHEEL | 1 | $29.95 | |
| 9 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 11 | 0423-618 | NUT,LUG MOUNTING-CHROME | 1 | $3.57 | |
| 12 | 1402-953 | TIRE,DURO KADEN-26X9R14 | 1 | $211.95 | |
| 13 | 2402-071 | WHEEL,REAR-ALUMINUM (14X8.0) | 1 | $225.95 | |
| 14 | 1402-954 | TIRE,DURO KADEN-26X11R14 | 1 | $220.95 |
