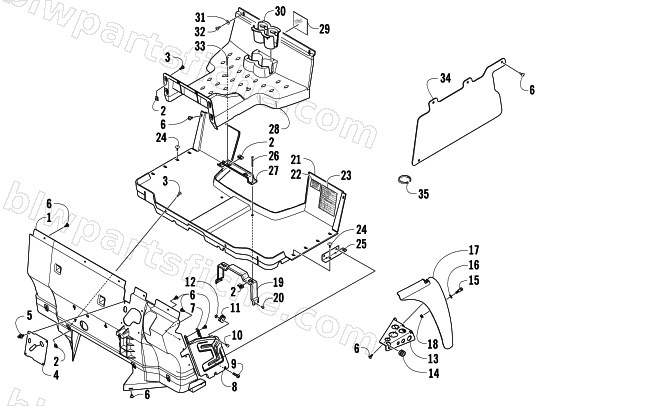

2014 Arctic Cat PROWLER 500 HDX — CONSOLE AND FLOOR PANEL ASSEMBLY
2014 PROWLER 500 HDX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-798 | PANEL,INNER FENDER-ROUTED (HDX) | 1 | $187.95 | |
| 2 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 3 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 4 | 0405-407 | BOOT,STEERING-EPS (DIE CUT) | 1 | $3.71 | |
| 5 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 6 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 7 | 4506-596 | BRACKET,KICK PANEL-PTD BLACK | 1 | $19.25 | |
| 8 | 2416-848 | PANEL,SIDE KICK | 1 | $50.95 | |
| 9 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 10 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 11 | 2416-846 | TONGUE,BUCKLE | 1 | $10.97 | |
| 12 | 0623-056 | NUT,LOCK M6X1 | 1 | $0.40 | |
| 13 | 2506-066 | BRACKET,SUPPORT-RH-PTD BLK | 1 | $27.95 | |
| 13 | 2506-067 | BRACKET,SUPPORT-LH-PTD BLK | 1 | $27.95 | |
| 14 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 15 | 0623-855 | SCREW, HEX,DOME HEAD SHOULDER-1/4-20X.50 | 1 | $13.73 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 1406-730 | FENDER,FRONT RH MARSH GREEN | 1 | $50.95 | |
| 17 | 1406-731 | FENDER,FRONT LH MARSH GREEN | 1 | $50.95 | |
| 17 | 1406-792 | FENDER,FRONT-RH-RED | 1 | $84.95 | |
| 17 | 1406-791 | FENDER,FRONT-LH-RED | 1 | $84.95 | |
| 18 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 19 | 2516-313 | BRACKET,FLOOR SUPPORT-PAINTED | 1 | $42.95 | |
| 20 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 21 | 2416-085 | R/B 5406-460 | 1 | $539.95 | |
| 22 | 2411-233 | DECAL,"TREAD LIGHTLY" (HDX) | 1 | $3.30 | |
| 23 | 2411-232 | DECAL,WARNING-TCLOC (HDX) | 1 | $6.47 | |
| 24 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 25 | 4506-260 | BRACKET,KICK PANEL-RH-PTD BLACK | 1 | $19.25 | |
| 25 | 4506-261 | BRACKET,KICK PANEL-LH-PTD BLACK | 1 | $19.25 | |
| 26 | 8468-670 | SCREW,MACH-TSPNH M6X1.0X70 CL8.8 BLK | 1 | $3.02 | |
| 27 | 2416-483 | BRKT,SUB-FLOOR MOUNTING | 1 | $26.95 | |
| 28 | 5506-619 | FLOOR,SUB/SHIELD-ASSY | 1 | $283.95 | |
| 29 | 0412-782 | R/B 1412-119 | 1 | $18.95 | |
| 30 | 2416-109 | GROMMET,CUPHOLDER | 1 | $37.95 | |
| 31 | 8450-133 | WASHER,FLAT-M8-9.12 X 25.40 X 2.30Z&Y | 1 | $0.28 | |
| 32 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 33 | 8468-655 | SCREW,MACH-TSPNH M6X1.0X55 CL8.8 BLK | 1 | $1.30 | |
| 34 | 4406-355 | PANEL,SPLASH-REAR | 1 | $33.95 | |
| 35 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
