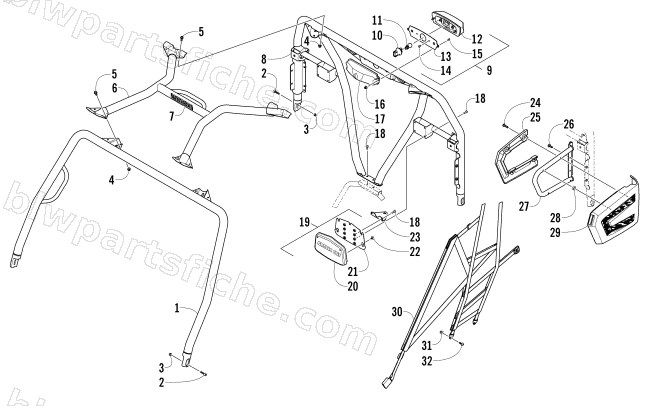

ROPS AND TAILLIGHT ASSEMBLY
2014 PROWLER 550 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4506-859 | HOOP,CANOPY-FRONT-PTD BLACK | 1 | $324.95 | |
| 2 | 1423-140 | SCREW,CAP-HSH M10 X 1.25 X 35 | 1 | $1.78 | |
| 3 | 1423-161 | NUT,HEX LOCK-NSL M10X1.25 GR 8 DIN 985 | 1 | $0.68 | |
| 4 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 5 | 1423-151 | SCREW,CAP-HFH M10X1.25X25 - CL10.9 | 1 | $3.30 | |
| 6 | 4506-865 | TOP,CANOPY-PTD BLACK | 1 | $244.95 | |
| 7 | 0411-501 | DECAL,"ARCTIC CAT"-WHT | 1 | $3.30 | |
| 8 | 4506-830 | HOOP,CANOPY-REAR-BLACK | 1 | $567.95 | |
| 9 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 10 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 11 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 12 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 13 | 2406-069 | BRACKET,TAILLIGHT MOUNT-BLACK | 1 | $20.63 | |
| 14 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 15 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 16 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 17 | 2516-893 | COVER,TAILLIGHT | 1 | $13.73 | |
| 18 | 0423-361 | SCREW,MACH-TSTRH M6-1.0 X 12 CL8.8 BLK | 1 | $0.95 | |
| 19 | 4406-989 | PAD,HEADREST | 1 | $26.95 | |
| 20 | 1406-884 | R/B 4406-989 | 1 | $28.95 | |
| 21 | 1506-722 | HEADREST MOUNT-PAINTED-BLACK | 1 | $89.95 | |
| 22 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 23 | 4506-296 | BRACKET,FLAG MOUNTING-PTD BLACK | 1 | $17.87 | |
| 24 | 8477-640 | SCREW,MACH-TSTRH M6X1.0X40 Z&BLK | 1 | $15.11 | |
| 25 | 4406-186 | GUARD,SHOULDER INNER-RH | 1 | $27.95 | |
| 25 | 4406-187 | GUARD,SHOULDER INNER-LH | 1 | $27.95 | |
| 26 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 | |
| 27 | 4506-824 | SUPPORT,SHOULDER GUARD-RH-BLACK | 1 | $90.95 | |
| 27 | 4506-825 | SUPPORT,SHOULDER GUARD-LH-BLACK | 1 | $90.95 | |
| 28 | 1423-174 | SLEEVE,METAL - PLATED Z&B | 1 | $2.88 | |
| 29 | 4406-108 | GUARD,SHOULDER-RH | 1 | $112.95 | |
| 29 | 4406-109 | GUARD,SHOULDER-LH | 1 | $112.95 | |
| 30 | 4406-188 | GUARD,SHOULDER NET-RH | 1 | $136.95 | |
| 30 | 4406-189 | GUARD,SHOULDER NET-LH | 1 | $136.95 | |
| 31 | 1423-171 | NUT,FLG LOCK-NYLON SL M6-1.0 CL8 Z&B | 1 | $1.23 | |
| 32 | 1423-196 | BOLT,SHOULDER-M6 X 1.0 X 12mm LG | 1 | $5.37 |
