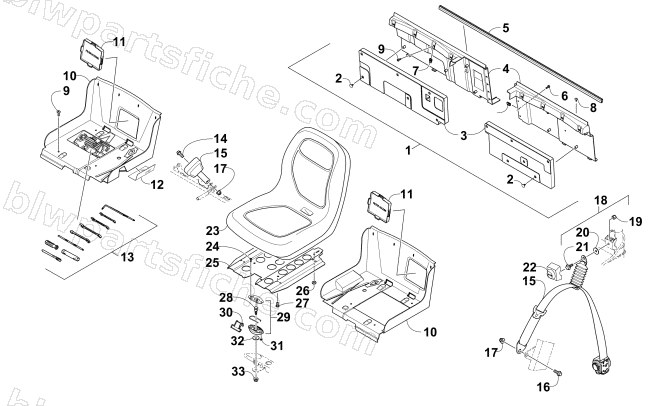

2014 Arctic Cat PROWLER 550 XT — SEAT ASSEMBLY
2014 PROWLER 550 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-094 | PANEL, SEAT BACK - ASSY | 1 | $381.95 | |
| 2 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 3 | 4406-320 | PANEL,SEAT BACK-RH-FOAM | 1 | $129.95 | |
| 3 | 4406-321 | PANEL,SEAT BACK-LH-FOAM | 1 | $129.95 | |
| 4 | 2406-912 | PANEL,SEAT BACK-RH | 1 | $56.95 | |
| 4 | 2406-913 | PANEL,SEAT BACK-LH | 1 | $56.95 | |
| 5 | 2406-915 | SEAL,CARGO BOX | 1 | $74.95 | |
| 6 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 7 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 8 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 9 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 10 | 2406-910 | BASE,SEAT-RH | 1 | $69.95 | |
| 10 | 2406-911 | BASE,SEAT-LH | 1 | $69.95 | |
| 11 | 2416-091 | PANEL,FILTER ACCESS | 1 | $26.95 | |
| 12 | 0412-560 | SHIELD,HEAT-SEAT BASE | 1 | $10.97 | |
| 13 | 0444-122 | KIT, TOOL | 1 | $24.77 | |
| 14 | 1423-182 | SCREW,CAP-HFH M12X1.75X30 CL10.9 RIE BLK | 1 | $3.71 | |
| 15 | 5506-196 | BELT,SEAT-ASSY (3 PT) | 1 | $275.95 | |
| 16 | 1423-199 | SCREW,CAP-HFH M12X1.75X25 CL10.9 RIE BLK | 1 | $3.44 | |
| 17 | 1423-184 | NUT,HEX FLG-NYL LOCK M12X1.75 CL10 Z&Y | 1 | $1.64 | |
| 18 | 0423-915 | SHOULDER BOLT ASSY (PKG) | 1 | $20.63 | |
| 22 | 2416-638 | COVER,SEAT BELT | 1 | $4.26 | |
| 23 | 1506-925 | SEAT,LOW BACK | 1 | $316.95 | |
| 24 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 25 | 2506-780 | PLATE,SEAT-BASE PAINTED | 1 | $90.95 | |
| 26 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 27 | 8468-820 | SCREW,MACH-TSPNH M8X1.25X20 CL8.8 BLK | 1 | $1.50 | |
| 28 | 0423-559 | STUD,LATCH-SEAT | 1 | $13.73 | |
| 29 | 2706-164 | SEAT LATCH-MFG ASSY | 1 | $15.11 | |
| 30 | 2606-854 | LEVER,RELEASE-SEATLATCH | 1 | $9.59 | |
| 31 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 32 | 0423-073 | WASHER,FLAT-1.38 OD X .413 ID X.134 TH | 1 | $1.50 | |
| 33 | 8424-002 | NUT,HEX-FLG M10X1.25 CL8 Z&Y | 1 | $0.68 |
