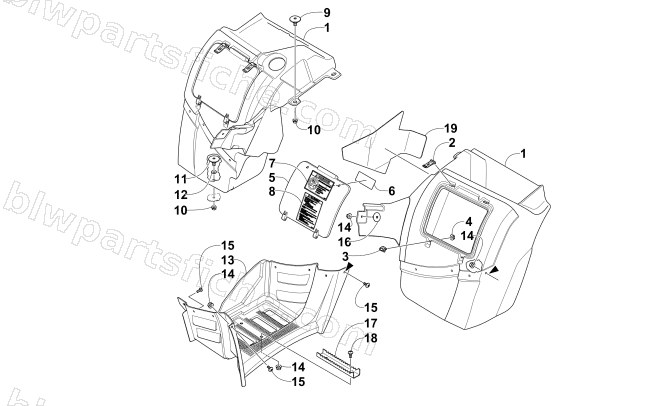

STORAGE BOX ASSEMBLY
2014 TBX 700
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-248 | BOX,STORAGE ASSY-RH | 1 | $279.95 | |
| 1 | 5506-199 | BOX,STORAGE LH-ASSY (SIDE PANELS) | 1 | $371.95 | |
| 2 | 1406-134 | STRAP,HATCH COVER | 1 | $4.40 | |
| 3 | 0506-674 | HINGE, WELDT | 1 | $47.95 | |
| 4 | 8424-502 | NUT,HEX-FLG M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 5 | 1506-020 | HATCH,STORAGE BOX-ASSY | 1 | $69.95 | |
| 6 | 0411-487 | DECAL,CAPACITY-SIDE CONTAINER | 1 | $12.35 | |
| 7 | 1411-809 | DECAL,WARNING-PASSENGER | 1 | $3.30 | |
| 8 | 2411-176 | DECAL,WARNING-TIRE PSI H2 TRV (7PSI) | 1 | $6.47 | |
| 9 | 0423-735 | SCREW,SIDE BOX MOUNT | 1 | $3.57 | |
| 10 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 11 | 0423-130 | SCREW,FUEL TANK | 1 | $5.65 | |
| 13 | 1406-356 | FOOTWELL,AUTO-RH | 1 | $105.95 | |
| 13 | 2406-429 | R/B 6406-763 | 1 | $99.95 | |
| 14 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 15 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 16 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 17 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 18 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 19 | 0412-395 | SHIELD,HEAT-SIDE BOX | 1 | $13.95 |
