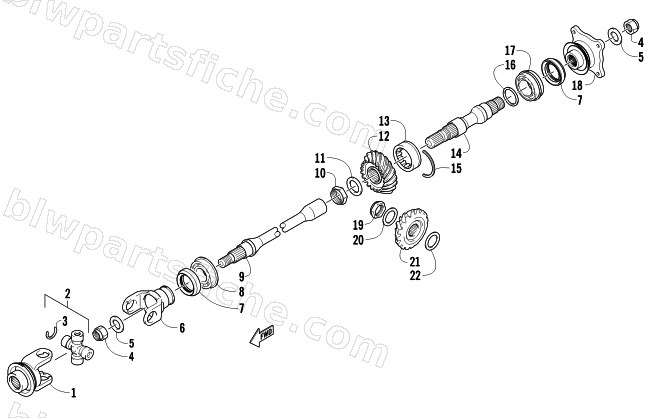

SECONDARY DRIVE ASSEMBLY
2014 TRV 400
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0819-071 | YOKE,DRIVE OUTPUT-FRONT | 1 | $74.95 | |
| 2 | 1402-164 | CROSS, UNIVERSAL(20mm)-SET | 1 | $22.01 | |
| 3 | 0423-450 | RING,RETAINING-CROSS | 1 | $3.02 | |
| 4 | 3306-428 | NUT | 1 | $10.97 | |
| 5 | 3306-226 | WASHER 16mm | 1 | $4.13 | |
| 6 | 0819-063 | YOKE,PROPELLER SHAFT-ASSY | 1 | $66.95 | |
| 7 | 0830-144 | SEAL,OIL-REAR SECONDARY DRIVEN SHAFT | 1 | $16.49 | |
| 8 | 0832-026 | BEARING,FR SEC DVN SHAFT (4X4) | 1 | $102.95 | |
| 9 | 0819-020 | SHAFT,SECONDARY DVN-FRONT (4X4) | 1 | $140.95 | |
| 10 | 0827-022 | NUT,SEC DRIVEN GEAR,22MM | 1 | $10.97 | |
| 11 | 0828-090 | WASHER,22.2X35.8X2.5 | 1 | $3.71 | |
| 12 | 0819-019 | GEAR, SECONDARY DRIVEN | 1 | $118.95 | |
| 13 | 0832-040 | BEARING,NEEDLE ROLLER-W/CUTOUT | 1 | $118.95 | |
| 14 | 0819-021 | SHAFT, SECONDARY DRIVEN - REAR | 1 | $108.95 | |
| 15 | 0819-070 | C-RING-DRIVEN BEARING | 1 | $3.71 | |
| 16 | 3305-955 | SHIM A DRIVEN BEVEL GEAR T=0.6MM | 1 | $4.40 | |
| 16 | 3305-956 | SHIM B DRIVEN BEVEL GEAR T=0.65MM | 1 | $4.40 | |
| 16 | 3305-957 | SHIM C DRIVEN BEVEL GEAR T=0.7MM | 1 | $4.40 | |
| 16 | 3305-958 | SHIM D DRIVEN BEVEL GEAR T=0.75MM | 1 | $4.40 | |
| 16 | 3305-959 | SHIM E DRIVEN BEVEL GEAR T=0.8MM | 1 | $4.40 | |
| 16 | 3305-960 | SHIM F DRIVEN BEVEL GEAR T=0.85MM | 1 | $4.40 | |
| 16 | 3305-961 | SHIM G DRIVEN BEVEL GEAR T=0.9MM | 1 | $4.40 | |
| 16 | 3305-962 | SHIM H DRIVEN BEVEL GEAR T=0.95MM | 1 | $4.40 | |
| 16 | 3305-963 | SHIM I DRIVEN BEVEL GEAR T=1.0MM | 1 | $4.40 | |
| 16 | 3305-964 | SHIM J DRIVEN BEVEL GEAR T=1.05MM | 1 | $4.40 | |
| 16 | 3305-965 | SHIM K DRIVEN BEVEL GEAR T=1.1MM | 1 | $4.40 | |
| 16 | 0828-088 | SHIM L DRIVEN BEVEL GEAR T=1.15MM | 1 | $5.37 | |
| 16 | 3305-966 | SHIM M DRIVEN BEVEL GEAR T=1.2MM | 1 | $4.40 | |
| 16 | 3305-967 | SHIM N DRIVEN BEVEL GEAR T=1.25MM | 1 | $4.40 | |
| 17 | 0832-041 | BEARING,CONRAD-W/SNAPRING | 1 | $187.95 | |
| 18 | 0819-022 | FLANGE, OUTPUT JOINT - REAR | 1 | $85.95 | |
| 19 | 0827-047 | NUT, HEX-COLLLARD (M20X1.5) | 1 | $10.97 | |
| 20 | 3304-042 | WASHER THRUST 20MM | 1 | $1.78 | |
| 21 | 0819-018 | GEAR, SECONDARY DRIVE | 1 | $94.95 | |
| 22 | 3306-009 | SHIM DRIVEN BEVEL GEAR T=0.60MM | 1 | $4.40 | |
| 22 | 3306-010 | SHIM DRIVEN BEVEL GEAR T=0.65MM | 1 | $4.40 | |
| 22 | 3306-011 | SHIM DRIVEN BEVEL GEAR T=0.70MM | 1 | $4.40 | |
| 22 | 3306-012 | SHIM DRIVEN BEVEL GEAR T=0.75MM | 1 | $4.40 | |
| 22 | 3306-013 | SHIM DRIVEN BEVEL GEAR T=0.80MM | 1 | $4.40 | |
| 22 | 3306-014 | SHIM DRIVEN BEVEL GEAR T=0.85MM | 1 | $4.40 | |
| 22 | 3306-015 | SHIM DRIVEN BEVEL GEAR T=0.90MM | 1 | $4.40 | |
| 22 | 3306-016 | SHIM DRIVEN BEVEL GEAR T=0.95MM | 1 | $4.40 | |
| 22 | 3306-017 | SHIM DRIVEN BEVEL GEAR T=1.00MM | 1 | $4.40 | |
| 22 | 3306-018 | SHIM DRIVEN BEVEL GEAR T=1.05MM | 1 | $4.40 | |
| 22 | 3306-019 | SHIM DRIVEN BEVEL GEAR T=1.10MM | 1 | $4.40 | |
| 22 | 3306-020 | SHIM DRIVEN BEVEL GEAR T=1.15MM | 1 | $4.40 | |
| 22 | 3306-021 | SHIM DRIVEN BEVEL GEAR T=1.20MM | 1 | $4.40 | |
| 22 | 3306-022 | SHIM DRIVEN BEVEL GEAR T=1.25MM | 1 | $4.40 |
