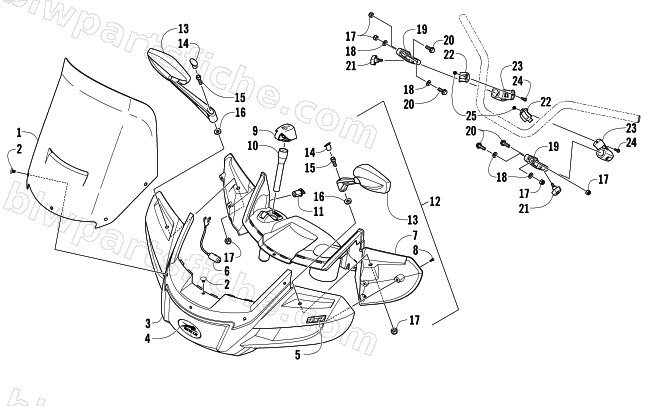

WINDSHIELD ASSEMBLY
2014 TRV 700 LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0405-384 | WINDSHIELD,FADED TINT | 1 | $231.95 | |
| 2 | 1436-313 | KIT,PLUG,CHRISTMAS TREE 8.5 X 13,10 PK | 1 | $9.59 | |
| 3 | 0505-868 | FAIRING,OUTER-NAVY BLUE-PTD | 1 | $440.95 | |
| 3 | 0505-792 | FAIRING,OUTER-E.M.GREEN-PTD | 1 | $454.95 | |
| 4 | 9611-751 | DECAL,EMBLEM-CHROME | 1 | $42.95 | |
| 4 | 9611-752 | DECAL,EMBLEM-GREEN | 1 | $43.95 | |
| 5 | 1411-989 | DECAL, '4X4' (H1, H2) | 1 | $19.25 | |
| 6 | 0486-319 | HARNESS,JUMPER-CLA (09 CRUISER) | 1 | $33.95 | |
| 7 | 0405-332 | FAIRING,INNER-BLACK | 1 | $268.95 | |
| 8 | 0423-950 | SCREW,TRUSS HEAD PT K50X16 GM 6047M Z&BL | 1 | $3.16 | |
| 9 | 0405-353 | CAP,FLASHLIGHT | 1 | $32.95 | |
| 10 | 1441-839 | FLASHLIGHT,SOUCY | 1 | $30.95 | |
| 11 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 12 | 1436-713 | MIRROR KIT, WINDGUARD | 1 | $78.95 | |
| 14 | 0423-952 | CAP,MIRROR-TOURING WINDSHIELD | 1 | $3.16 | |
| 15 | 8440-835 | SCREW,CAP-HSH M8X1.25X35 Z & BLK | 1 | $3.57 | |
| 16 | 0423-951 | WASHER,FLAT RUBBER 8.4 IDX28.7 ODX1.6 | 1 | $2.33 | |
| 17 | 8427-805 | NUT,HEX FLG-NYLOCK M8X1.25 CL8 RIE BLACK | 1 | $1.09 | |
| 18 | 0423-948 | WASHER,FLAT M8X22X2.4 Z&BLK | 1 | $1.23 | |
| 19 | 0405-352 | PIN,TAPER-WINDSHIELD MTG | 1 | $64.95 | |
| 20 | 0423-949 | SCREW,CAP-HFH(SERRATED)M8X1.25X30 CL8.8 | 1 | $3.16 | |
| 21 | 1441-902 | KNOB,PLASTIC-BLK-10MM | 1 | $6.20 | |
| 22 | 0405-351 | CAP,MOUNTING-WINDSHIELD | 1 | $27.95 | |
| 23 | 1436-545 | KIT,BRACKET-2 PIECE CRUISER WINDSHIELD | 1 | $74.95 | |
| 24 | 8471-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&B | 1 | $0.95 | |
| 25 | 8431-503 | NUT,HEX REG NYLOCK M5-.8 Z&BLK | 1 | $1.50 |
