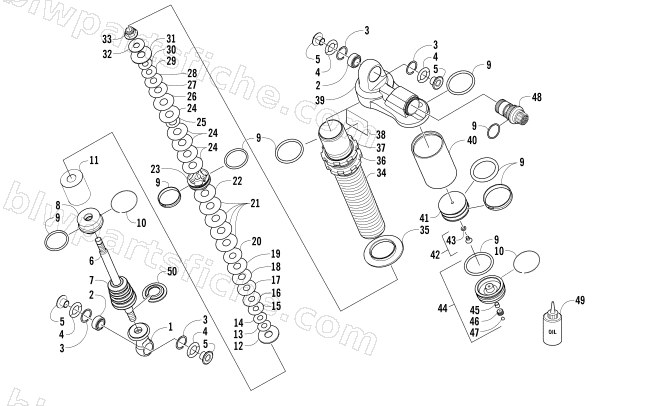

FRONT SUSPENSION SHOCK ABSORBER
2014 WILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0403-343 | SHOCK,FRONT (FOX) | 1 | $729.95 | |
| 1 | 0403-367 | EYELET,SHOCK-5/8-18 UNF X 2.10 LG | 1 | $54.95 | |
| 2 | 1604-664 | BEARING,SPHERICAL | 1 | $46.95 | |
| 3 | 3604-147 | RETAINING RING,INTERNAL SPIRAL | 1 | $16.49 | |
| 4 | 0403-349 | O-RING,SHOCK SPACER | 1 | $2.95 | |
| 5 | 0403-347 | SPACER,FRONT SHOCK MOUNT | 1 | $18.95 | |
| 6 | 0403-370 | SHAFT,CHROME-.620 OD X 13.90" TLG | 1 | $82.95 | |
| 7 | 0403-361 | BUMPER,.620 SHAFT X 2.350" TLG | 1 | $31.95 | |
| 8 | 0403-379 | BEARING,CAP ASSY-1.834 BORE X .620 SHAFT | 1 | $129.95 | |
| 9 | 0403-393 | SHOCK, SEAL REBUILD KIT-FOX | 1 | $94.95 | |
| 10 | 0604-992 | RETAINER, .062X1.850 ID ENDCAP | 1 | $6.06 | |
| 11 | 0403-371 | SPACER,SHAFT-.630 ID X 1.500 OD X 1.500 | 1 | $18.95 | |
| 12 | 2604-449 | WASHER, TOPOUT-1.570OD X .500ID X .128TH | 1 | $13.73 | |
| 13 | 0403-382 | VALVE, .900 OD X .504 ID X .012 TH | 1 | $12.95 | |
| 14 | 2604-481 | VALVE,.950 OD X .504 ID X .012 TH | 1 | $6.95 | |
| 15 | 2604-487 | VALVE,1.100 OD X .504 ID X .012 TH | 1 | $6.95 | |
| 16 | 2604-687 | VALVE,1.250 OD X .504 ID X .012 TH | 1 | $12.35 | |
| 17 | 2604-493 | VALVE,1.350 OD X .504 ID X .012 TH | 1 | $12.95 | |
| 18 | 2604-498 | VALVE,1.425 OD X .504 ID X .012 TH | 1 | $12.95 | |
| 19 | 2604-503 | VALVE,1.600 OD X .504 ID X .012 TH | 1 | $12.95 | |
| 20 | 0403-381 | VALVE,1.250 OD X .504 ID X .004 TH | 1 | $12.95 | |
| 21 | 2604-501 | VALVE,1.600 OD X .504 ID X .008 TH | 1 | $12.95 | |
| 22 | 0403-385 | VALVE,DB 1.600 OD X .504 ID X .006 TH | 1 | $13.95 | |
| 23 | 0403-394 | PISTON,DAMPING-4PORT-1.834" BORE FOX | 1 | $66.95 | |
| 24 | 2604-496 | VALVE,1.425 OD X .504 ID X .008 TH | 1 | $12.95 | |
| 25 | 0403-384 | VALVE, .750 OD X .504 ID X .008 TH | 1 | $12.95 | |
| 26 | 2604-491 | VALVE,1.350 OD X .504 ID X .008 TH | 1 | $12.95 | |
| 27 | 2604-685 | VALVE,1.250 OD X .504 ID X .008 TH | 1 | $12.35 | |
| 28 | 2604-485 | VALVE,1.100 OD X .504 ID X .008 TH | 1 | $6.95 | |
| 29 | 2604-479 | VALVE,.950 OD X .504 ID X .008 TH | 1 | $6.95 | |
| 30 | 2604-473 | VALVE,.800 OD X .504 ID X .008 TH | 1 | $6.95 | |
| 31 | 0403-383 | WASHER,TOP OUT-1.230 X .504 X.082 | 1 | $12.95 | |
| 32 | 3604-184 | WASHER,BACKUP-.750 OD X .503 ID X .100TH | 1 | $13.95 | |
| 33 | 0403-362 | NUT,CENTER LOCK-1/2-20 GR A | 1 | $2.95 | |
| 34 | 0403-366 | BODY,SHOCK-1.834 BORE X 13.100 TLG | 1 | $206.95 | |
| 35 | 0403-352 | ADAPTER,SPRING | 1 | $28.95 | |
| 36 | 0403-350 | NUT,PRELOAD-SHOCK | 1 | $25.95 | |
| 37 | 0403-348 | NUT,PRELOAD JAM-SHOCK | 1 | $25.95 | |
| 38 | 0403-363 | DECAL,FOX PODIUM | 1 | $13.73 | |
| 39 | 0403-376 | BODY,CAP-ASSY-PIGBACK-1.834BORE X.998 | 1 | $195.95 | |
| 40 | 0403-369 | RESERVOIR,1.834 BORE X 6.00 TLG | 1 | $117.95 | |
| 41 | 0403-377 | PISTON,FLOATING-ASSY-1.834 BORE | 1 | $122.95 | |
| 42 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 44 | 2603-525 | END CAP,RESERVOIR-ASSY 1.834 BORE | 1 | $76.95 | |
| 45 | 1604-428 | PLUG, RUBBER - VALVE | 1 | $13.73 | |
| 46 | 2603-338 | SCREW,SET-3/8-24 X .25" | 1 | $15.11 | |
| 47 | 2603-337 | BALL,AIR VALVE (.219 OD) - (FLOAT) | 1 | $7.16 | |
| 48 | 0403-380 | DAMPING ADJUST-ASSY | 1 | $129.95 | |
| 49 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 | |
| 50 | 0403-345 | RETAINER,SPRING | 1 | $32.95 |
