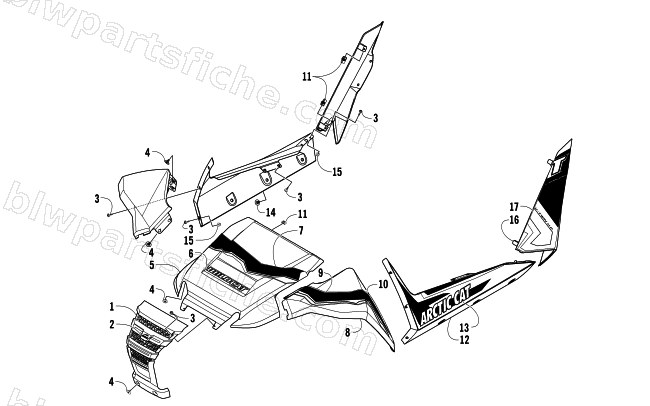

FRONT AND SIDE PANEL ASSEMBLIES
2014 WILDCAT 1000 LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2416-685 | GRILLE,FRONT | 1 | $41.95 | |
| 2 | 2411-943 | DECAL,GRILL-FRONT | 1 | $15.11 | |
| 3 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 4 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 5 | 5506-417 | HOOD,SD WHITE-PTD | 1 | $476.95 | |
| 6 | 3411-763 | DECAL,HOOD FWD-TAG | 1 | $10.97 | |
| 6 | 3411-741 | DECAL,HOOD FWD-ORG MET | 1 | $10.97 | |
| 7 | 3411-762 | DECAL,HOOD CREST-TAG | 1 | $42.95 | |
| 7 | 3411-740 | DECAL,HOOD CREST-ORG MET | 1 | $42.95 | |
| 8 | 5506-142 | PANEL,FENDER-FRT-RH SLVR DLR WHT-PTD | 1 | $212.95 | |
| 8 | 5506-143 | PANEL,FENDER-FRT-LH SLVR DLR WHT-PTD | 1 | $212.95 | |
| 9 | 3411-764 | DECAL,FR FENDER UPR RH-TAG | 1 | $20.63 | |
| 9 | 3411-765 | DECAL,FR FENDER UPR LH-TAG | 1 | $20.63 | |
| 9 | 3411-742 | DECAL,FR FENDER UPR RH-ORG MET | 1 | $20.63 | |
| 9 | 3411-743 | DECAL,FR FENDER UPR LH-ORG MET | 1 | $20.63 | |
| 10 | 3411-766 | DECAL,FR FENDER LWR RH-TAG | 1 | $20.63 | |
| 10 | 3411-767 | DECAL,FR FENDER LWR LH-TAG | 1 | $20.63 | |
| 10 | 3411-744 | DECAL,FR FENDER LWR RH-ORG MET | 1 | $26.95 | |
| 10 | 3411-745 | DECAL,FR FENDER LWR LH-ORG MET | 1 | $26.95 | |
| 11 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 12 | 2416-988 | PANEL,SIDE-LWR-RH-BLK | 1 | $50.95 | |
| 12 | 2416-989 | PANEL,SIDE-LWR-LH-BLK | 1 | $50.95 | |
| 13 | 3411-772 | DECAL,SIDE LWR RH-TAG | 1 | $50.95 | |
| 13 | 3411-773 | DECAL,SIDE LWR LH-TAG | 1 | $50.95 | |
| 13 | 3411-750 | DECAL,SIDE LWR RH-ORG MET | 1 | $50.95 | |
| 13 | 3411-751 | DECAL,SIDE LWR LH-ORG MET | 1 | $50.95 | |
| 14 | 1423-133 | SCREW,SHOULDER 11 X 3.5 X 6MM | 1 | $3.44 | |
| 15 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 16 | 2416-990 | PANEL,SIDE-UPR-REAR-RH-BLK | 1 | $37.95 | |
| 16 | 2416-991 | PANEL,SIDE-UPR-REAR-LH-BLK | 1 | $37.95 | |
| 17 | 3411-774 | DECAL,PILLAR RH-TAG | 1 | $50.95 | |
| 17 | 3411-775 | DECAL,PILLAR LH-TAG | 1 | $50.95 | |
| 17 | 3411-752 | DECAL,PILLAR RH-ORG MET | 1 | $50.95 | |
| 17 | 3411-753 | DECAL,PILLAR LH-ORG MET | 1 | $50.95 |
