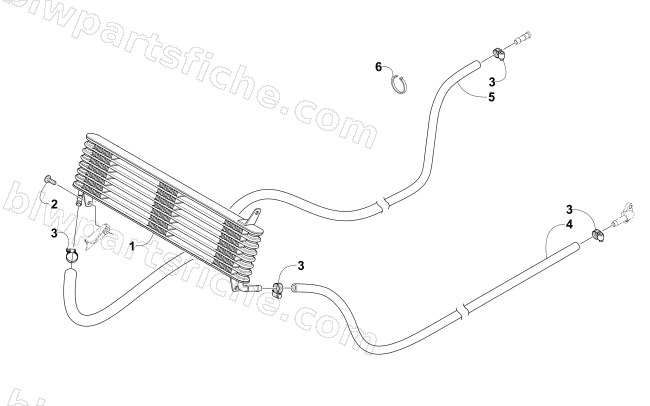

2014 Arctic Cat WILDCAT 4 LTD — OIL COOLER ASSEMBLY
2014 WILDCAT 4 LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-308 | COOLER,OIL (WC) | 1 | $352.95 | |
| 2 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 3 | 0423-632 | CLAMP,HOSE #5 MICRO-GEAR SIZE 05 | 1 | $4.82 | |
| 4 | 0410-269 | HOSE,OIL-9.52 ID X 2439mm LG | 1 | $81.95 | |
| 5 | 0410-270 | HOSE,OIL-9.52 ID X 2898mm LG | 1 | $89.95 | |
| 6 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
