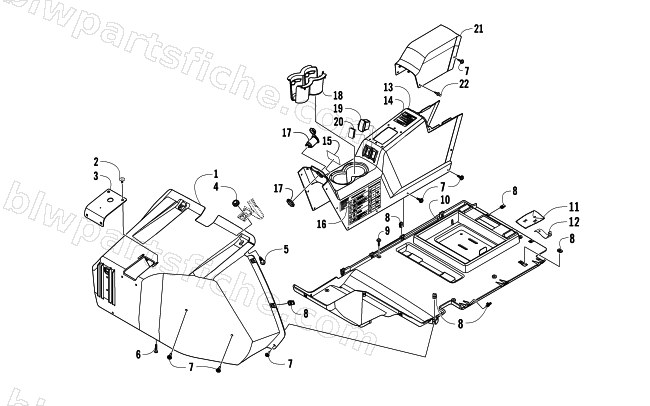

FRONT CONSOLE AND FLOOR PANEL ASSEMBLY
2014 WILDCAT 4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2416-592 | PANEL,INNER FENDER-FRT-RH | 1 | $100.95 | |
| 1 | 2416-593 | PANEL,INNER FENDER-FRT-LH | 1 | $100.95 | |
| 2 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 3 | 2416-983 | SHIELD,SPLASH-BRAKE PEDAL | 1 | $4.82 | |
| 4 | 1423-104 | GROMMET | 1 | $1.37 | |
| 5 | 1423-125 | SCREW,SHOULDER-MR 6 X 1.0 X 24mm | 1 | $4.68 | |
| 6 | 1423-083 | SCREW,TSPH 1/4-10 X 1-1/4 PLASTITE | 1 | $2.19 | |
| 7 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 8 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 9 | 1423-142 | SCREW,HH W/SPRING WASHER M6X1.0X30 | 1 | $1.64 | |
| 10 | 2416-516 | PANEL,FLOOR-RH | 1 | $148.95 | |
| 10 | 2416-517 | PANEL,FLOOR-LH | 1 | $148.95 | |
| 11 | 2516-863 | KIT,TOOL-HDX | 1 | $69.95 | |
| 12 | 0707-582 | RETAINER, DRIVE BELT-VELCRO | 1 | $17.87 | |
| 13 | 7506-083 | CONSOLE,FRONT W/DECALS | 1 | $92.95 | |
| 14 | 3411-262 | DECAL,WARNING-REVERSE | 1 | $10.97 | |
| 15 | 2411-311 | DECAL,STARTING INSTRUCTIONS-PARK | 1 | $13.73 | |
| 16 | 2411-940 | DECAL,WARNING-TCLOC WILDCAT (BLACK) | 1 | $13.73 | |
| 17 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 18 | 2416-109 | GROMMET,CUPHOLDER | 1 | $37.95 | |
| 19 | 0409-071 | SWITCH,REVERSE OVERRIDE | 1 | $47.95 | |
| 20 | 0409-070 | PLUG,SWITCH HOLE | 1 | $3.57 | |
| 21 | 2416-841 | PANEL,ACCESS-BATTERY | 1 | $37.95 | |
| 22 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 |
