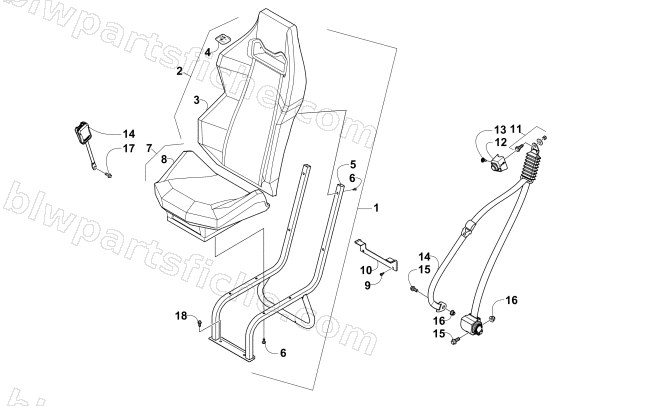

2014 Arctic Cat WILDCAT 4X LTD — REAR SEAT ASSEMBLY
2014 WILDCAT 4X LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-437 | SEAT, REAR-ASSY-BLK/VIB RED | 1 | $874.95 | |
| 1 | 5506-073 | SEAT, REAR - ASSY | 1 | $888.95 | |
| 2 | 5506-209 | SEAT BACK-BLK/RED | 1 | $440.95 | |
| 2 | 5506-075 | SEAT, BACK | 1 | $441.95 | |
| 3 | 5506-639 | COVER, SEAT BACK-BLK/RED | 1 | $341.95 | |
| 3 | 5506-637 | COVER, SEAT BACK-BLACK | 1 | $341.95 | |
| 4 | 1423-265 | KIT, SEAT HARDWARE | 1 | $12.35 | |
| 5 | 5506-072 | FRAME, REAR SEAT- PTD BLACK | 1 | $227.95 | |
| 6 | 8468-617 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 W/2353 | 1 | $0.54 | |
| 7 | 5506-208 | SEAT BASE-BLK/RED | 1 | $264.95 | |
| 7 | 5506-074 | SEAT, BASE | 1 | $268.95 | |
| 8 | 5506-638 | COVER, SEAT BASE-BLK/RED | 1 | $256.95 | |
| 9 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 10 | 5506-226 | BRACKET,REAR SEAT-PTD BLACK | 1 | $23.39 | |
| 11 | 0423-915 | SHOULDER BOLT ASSY (PKG) | 1 | $20.63 | |
| 12 | 2416-936 | COVER,SEATBELT-RH | 1 | $20.63 | |
| 12 | 2416-937 | COVER,SEATBELT-LH | 1 | $20.63 | |
| 13 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 14 | 5506-161 | BELT,SEAT-3PT 15.5" NAR CABLE-ASSY | 1 | $318.95 | |
| 15 | 1423-182 | SCREW,CAP-HFH M12X1.75X30 CL10.9 RIE BLK | 1 | $3.71 | |
| 16 | 1423-184 | NUT,HEX FLG-NYL LOCK M12X1.75 CL10 Z&Y | 1 | $1.64 | |
| 17 | 1423-183 | SCREW,CAP-HFHM12X1.75X30CL10.9RIE W/2353 | 1 | $3.85 | |
| 18 | 8408-821 | SCREW,CAP-HFH M8X1.25X20 CL8.8 W/2353 | 1 | $1.09 |
