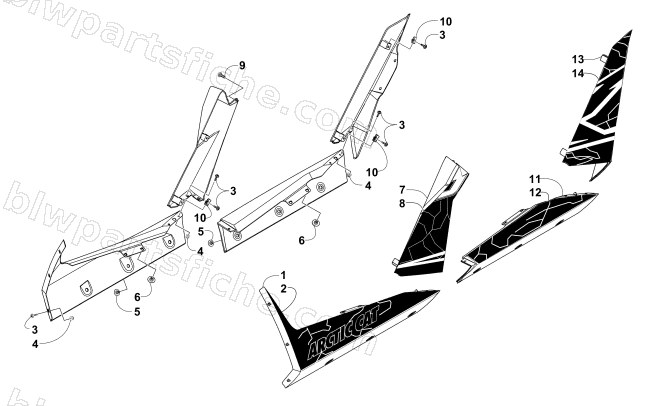

2014 Arctic Cat WILDCAT 4X LTD — SIDE PANEL ASSEMBLY
2014 WILDCAT 4X LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2416-988 | PANEL,SIDE-LWR-RH-BLK | 1 | $50.95 | |
| 1 | 2416-989 | PANEL,SIDE-LWR-LH-BLK | 1 | $50.95 | |
| 2 | 4411-022 | DECAL,SIDE LWR RH-VR | 1 | $105.95 | |
| 2 | 4411-023 | DECAL,SIDE LWR LH-VR | 1 | $105.95 | |
| 2 | 4411-006 | DECAL,SIDE LWR FRONT RH-MB | 1 | $50.95 | |
| 2 | 4411-007 | DECAL,SIDE LWR FRONT LH-MB | 1 | $50.95 | |
| 3 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 4 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 5 | 1423-133 | SCREW,SHOULDER 11 X 3.5 X 6MM | 1 | $3.44 | |
| 6 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 7 | 4406-174 | PANEL,SIDE-UPR-MID-RH-BLK | 1 | $37.95 | |
| 7 | 4406-175 | PANEL,SIDE-UPR-MID-LH-BLK | 1 | $37.95 | |
| 8 | 4411-024 | DECAL,PILLAR MID RH-VR | 1 | $50.95 | |
| 8 | 4411-025 | DECAL,PILLAR MID LH-VR | 1 | $50.95 | |
| 8 | 4411-008 | DECAL,FRONT PILLAR RH-MB | 1 | $50.95 | |
| 8 | 4411-009 | DECAL,FRONT PILLAR LH-MB | 1 | $50.95 | |
| 9 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 10 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 11 | 4506-844 | PANEL,REAR SIDE-LWR-RH-BLK | 1 | $37.95 | |
| 11 | 4506-845 | PANEL,REAR SIDE-LWR-LH-BLK | 1 | $37.95 | |
| 12 | 4411-028 | DECAL,REAR SIDE LWR RH-VR | 1 | $42.95 | |
| 12 | 4411-029 | DECAL,REAR SIDE LWR LH-VR | 1 | $42.95 | |
| 12 | 4411-012 | DECAL,SIDE LWR RR RH-MB | 1 | $33.95 | |
| 12 | 4411-013 | DECAL,SIDE LWR REAR LH-MB | 1 | $33.95 | |
| 13 | 2416-990 | PANEL,SIDE-UPR-REAR-RH-BLK | 1 | $37.95 | |
| 13 | 2416-991 | PANEL,SIDE-UPR-REAR-LH-BLK | 1 | $37.95 | |
| 14 | 4411-030 | DECAL,RR PILLAR RH-VR | 1 | $66.95 | |
| 14 | 4411-031 | DECAL,RR PILLAR LH-VR | 1 | $66.95 | |
| 14 | 4411-014 | DECAL,RR PILLAR RH-MB | 1 | $50.95 | |
| 14 | 4411-015 | DECAL,RR PILLAR LH-MB | 1 | $50.95 |
