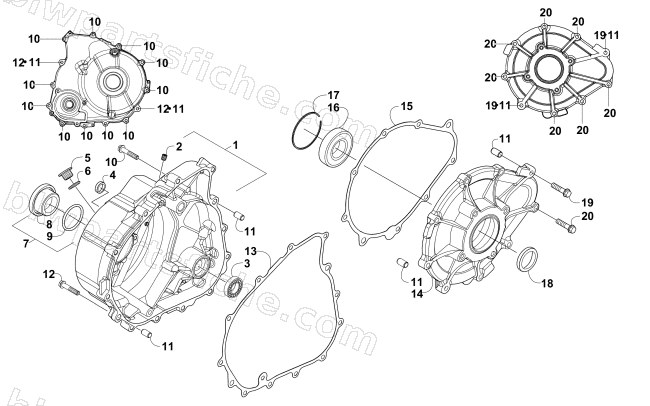

MAGNETO AND PTO COVERS
2014 WILDCAT TRAIL XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-976 | COVER ASSY R CRANK CASE | 1 | $156.95 | |
| 2 | 3304-065 | CONE TYPE PLUG 6*7 | 1 | $1.37 | |
| 3 | 3306-977 | BEARING RADIAL BALL 6001 | 1 | $16.49 | |
| 4 | 0830-207 | OIL SEAL 13.7*24*5 | 1 | $4.26 | |
| 5 | 3304-012 | CAP ACG A.C.G. | 1 | $3.30 | |
| 6 | 3304-099 | O-RING 13.8*2.5 | 1 | $2.33 | |
| 7 | 0812-087 | CAP ASSY (INCLUDES O-RING 0835-016) | 1 | $13.73 | |
| 8 | 0812-088 | CAP,30MM | 1 | $13.73 | |
| 9 | 0835-016 | O-RING 27.4*2.4 | 1 | $1.50 | |
| 10 | 0826-136 | BOLT,M6X1.0X30 | 1 | $0.85 | |
| 11 | 3303-341 | PIN DOWEL 8*14 | 1 | $2.33 | |
| 12 | 3303-386 | BOLT FLANGE SH 6*35 | 1 | $2.06 | |
| 13 | 3306-912 | GASKET R COVER | 1 | $17.87 | |
| 14 | 3306-793 | COVER LEFT CRANKCASE | 1 | $79.95 | |
| 15 | 3306-913 | GASKET L COVER | 1 | $20.63 | |
| 16 | 0832-087 | BEARING RADIAL BALL 6207-9C3 | 1 | $66.95 | |
| 17 | 3307-037 | CIR CLIP IN 72 | 1 | $5.92 | |
| 18 | 3307-034 | OIL SEAL 35*47*7 | 1 | $20.63 | |
| 19 | 3305-945 | BOLT FLANGE SH 6X32 | 1 | $1.50 | |
| 20 | 3303-384 | BOLT FLANGE SH 6*25 | 1 | $0.81 |
