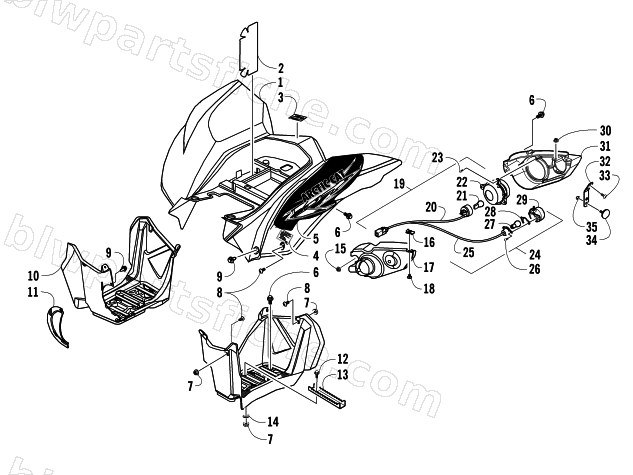

2014 Arctic Cat XC 450 EFI / — REAR BODY AND TAILLIGHT ASSEMBLY
2014 XC 450 EFI /
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-719 | FENDER,REAR-W/DECALS (BLACK DIAMOND) | 1 | $826.95 | |
| 2 | 3306-543 | SHIELD LH | 1 | $5.37 | |
| 3 | 1411-809 | DECAL,WARNING-PASSENGER | 1 | $3.30 | |
| 4 | 2411-586 | DECAL,WARNING-TIRE/LOAD (XC 450) | 1 | $10.97 | |
| 5 | 3411-608 | DECAL,REAR FENDER-RH (XC 450) | 1 | $42.95 | |
| 5 | 3411-609 | DECAL,REAR FENDER-LH (XC 450) | 1 | $42.95 | |
| 6 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 7 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 8 | 3304-404 | BOLT SPECIAL 6*16 | 1 | $1.78 | |
| 9 | 3305-448 | CLIP,MUDGUARD | 1 | $2.33 | |
| 10 | 3306-480 | MUDGUARD R FLOOR | 1 | $90.95 | |
| 10 | 3306-481 | MUDGUARD L FLOOR | 1 | $90.95 | |
| 11 | 3306-488 | MUDGUARD FR R FLOOR | 1 | $5.65 | |
| 12 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 13 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 14 | 3305-852 | WASHER,PLAIN 6MM | 1 | $0.81 | |
| 15 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 16 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 17 | 3306-482 | GUARD COVER R TAIL LIGHT | 1 | $4.95 | |
| 17 | 3306-483 | GUARD COVER L TAIL LIGHT | 1 | $4.95 | |
| 18 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 19 | 3306-510 | LIGHT ASS'Y RR COMB | 1 | $58.95 | |
| 19 | 3306-511 | LIGHT ASS'Y RR COMB | 1 | $58.95 | |
| 20 | 3306-514 | SOCKET COMP RR COMB | 1 | $20.63 | |
| 21 | 3303-849 | BULB TAIL & STOP 12V21W/5W | 1 | $12.35 | |
| 22 | 3306-512 | UNIT TAIL LIGHT | 1 | $30.95 | |
| 22 | 3306-513 | UNIT TAIL LIGHT | 1 | $30.95 | |
| 23 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 24 | 3306-515 | LIGHT ASS'Y REVERSE | 1 | $114.95 | |
| 25 | 3306-516 | SOCKET COMP R/L | 1 | $20.63 | |
| 27 | 3313-508 | BULB,BACKUP(R5W -12V 5W) (CLEAR) | 1 | $6.75 | |
| 29 | 3306-506 | UNIT WINKER FR | 1 | $42.95 | |
| 30 | 3304-774 | NUT FLANGE 5MM(G) | 1 | $0.81 | |
| 31 | 3306-484 | COVER R TAIL LIGHT | 1 | $17.87 | |
| 31 | 3306-485 | COVER L TAIL LIGHT | 1 | $17.87 | |
| 32 | 3306-479 | STAY,REFLECTOR | 1 | $3.02 | |
| 33 | 3305-703 | SCREW SPECIAL 6*20 | 1 | $1.78 | |
| 34 | 3305-273 | REFLEX REFLECTOR (RED) | 1 | $16.49 | |
| 35 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 |
