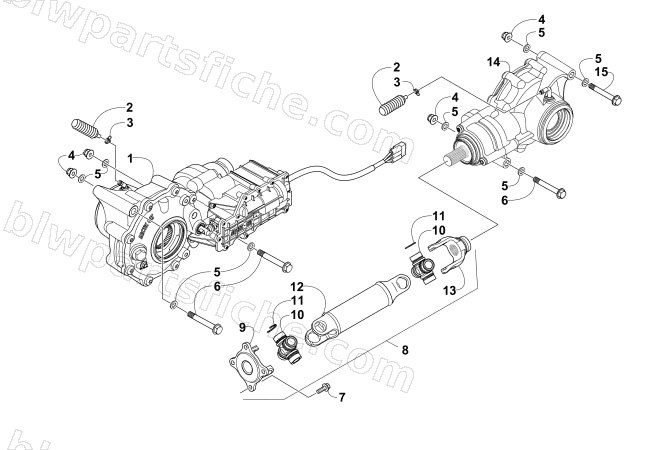

DRIVE TRAIN ASSEMBLY
2015 1000 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2502-110 | GEARCASE,FRONT-ASSY (3.1) | 1 | $2,079.95 | |
| 2 | 1402-620 | BLADDER,CASE | 1 | $12.35 | |
| 3 | 0423-315 | CLAMP, HOSE-DOUBLE WIRE | 1 | $0.95 | |
| 4 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 5 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 6 | 0423-404 | SCREW,CAP-HFH M10X1.25X120 CL10.9 Z&Y | 1 | $3.30 | |
| 7 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 8 | 1502-098 | DRIVESHAFT,REAR-ASSEMBLY | 1 | $454.95 | |
| 9 | 1402-689 | YOKE,FLANGE | 1 | $71.95 | |
| 10 | 0402-944 | CROSS, UNIVERSAL (25mm) - SET | 1 | $30.95 | |
| 12 | 1502-099 | DRIVESHAFT,REAR-BLACK | 1 | $169.95 | |
| 13 | 1402-567 | YOKE,SLIP (25MM) | 1 | $71.95 | |
| 14 | 2502-085 | GEARCASE,REAR-ASSY (3.1-H2-PTL) | 1 | $1,356.95 | |
| 15 | 0423-830 | BOLT,HFH M10-1.25X125 CL10.9 ZY | 1 | $13.73 |
