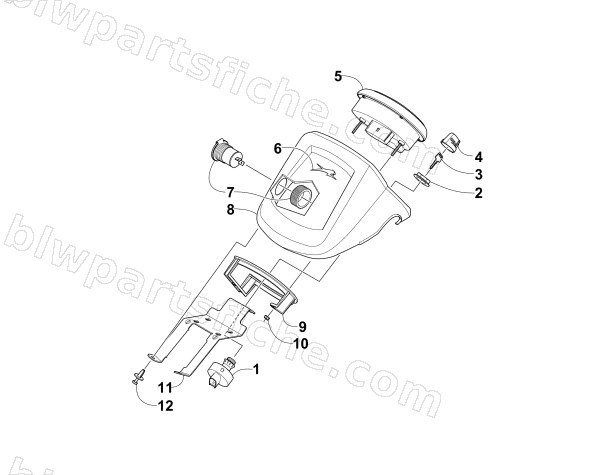

2015 Arctic Cat 1000 XT — INSTRUMENT POD ASSEMBLY
2015 1000 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0430-090 | SWITCH,IGNITION-LIGHTS (09 ATV) | 1 | $66.95 | |
| 2 | 0430-112 | NUT,SWITCH (CY) | 1 | $1.50 | |
| 3 | 0430-109 | R/B 0430-106 | 1 | $21.95 | |
| 3 | 0430-110 | R/B 0430-106 | 1 | $21.95 | |
| 4 | 0430-111 | COVER,KEY (CY) | 1 | $13.95 | |
| 5 | 0520-238 | GAUGE,A/D-ISO (015 1000 XT) | 1 | $525.95 | |
| 6 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 7 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 8 | 0505-793 | POD,INSTRUMENT-VIBE MET RED-PTD | 1 | $100.95 | |
| 9 | 0420-065 | CLAMP,PLASTIC-LCD GAUGE | 1 | $4.40 | |
| 10 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 11 | 2506-470 | BRKT,MTG GAUGE-PTD | 1 | $26.95 | |
| 12 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 |
