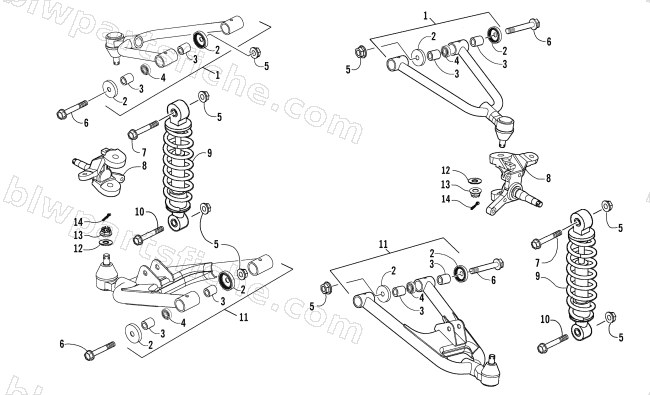

FRONT SUSPENSION ASSEMBLY
2015 300 DVX CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-682 | ARM ASSY R UP SWING-PLT | 1 | $235.95 | |
| 1 | 3305-683 | ARM ASSY LEFT UP SWING-PLT | 1 | $235.95 | |
| 2 | 3304-090 | OIL SEAL 18*26*4 | 1 | $4.13 | |
| 3 | 3304-689 | COLLAR SWING ARM | 1 | $13.73 | |
| 4 | 3304-199 | BEARING BALL RADIAL 6000 | 1 | $20.63 | |
| 5 | 3304-031 | NUT U 10MM | 1 | $2.61 | |
| 6 | 3304-182 | BOLT FLANGE 10*57 | 1 | $2.33 | |
| 7 | 3303-376 | SCREW,CAP-HFH M10X1.25X40 | 1 | $2.06 | |
| 8 | 3304-336 | SHAFT ASSY R STEERING | 1 | $163.95 | |
| 8 | 3304-337 | SHAFT ASSY L STEERING | 1 | $163.95 | |
| 9 | 3306-704 | CUSHION ASSY FR (WHITE) | 1 | $457.95 | |
| 10 | 3304-595 | BOLT FLANGE 10*50 | 1 | $2.61 | |
| 11 | 3305-684 | ARM ASSY R LOW SWING-PLT | 1 | $252.95 | |
| 11 | 3305-685 | ARM ASSY L LOW SWING | 1 | $252.95 | |
| 12 | 3303-335 | WASHER PLAIN 12*26*2.3 | 1 | $0.81 | |
| 13 | 3303-328 | NUT CASTLE 12MM | 1 | $3.57 | |
| 14 | 3303-470 | PIN SPLIT 3.0*25 30251 CPN | 1 | $1.37 |
