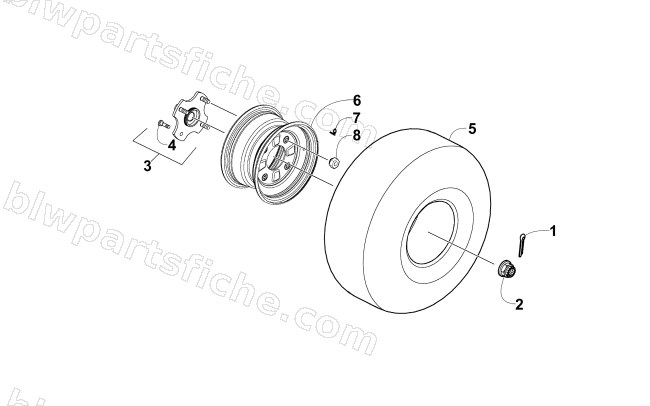

2015 Arctic Cat 300 DVX CAT — REAR WHEEL ASSEMBLY
2015 300 DVX CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-340 | PIN SPLIT 3*30 | 1 | $1.37 | |
| 2 | 3304-129 | NUT FLANGE CASTLE 16MM | 1 | $12.35 | |
| 3 | 3305-266 | CONNECTOR ASSY RR | 1 | $102.95 | |
| 4 | 3304-014 | BOLT CONNECTOR | 1 | $3.02 | |
| 5 | 3304-297 | TIRE ASSY RR (KENDA) | 1 | $152.95 | |
| 6 | 3304-295 | RIM RR WHEEL | 1 | $260.95 | |
| 7 | 3304-562 | VALVE RIM (TR412) | 1 | $12.35 | |
| 8 | 3304-028 | NUT WHEEL | 1 | $2.61 |
