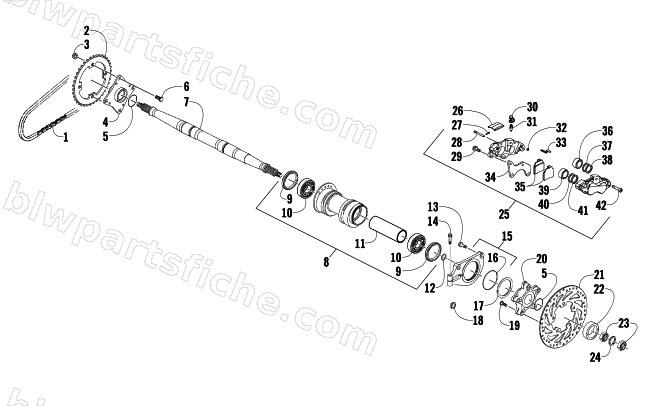

2015 Arctic Cat 300 DVX — REAR AXLE AND BRAKE ASSEMBLY

2015 300 DVX

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3304-510	CHAIN DRIVE	1	$327.95
2	3304-291	SPRKT FINAL DRIVEN	1	$66.95
3	3304-031	NUT U 10MM	1	$2.61
4	3304-292	FLANGE SPROCKET	1	$100.95
5	3303-603	O-RING 39.8*2.2	1	$3.44
6	3304-403	BOLT WELD 10*25	1	$2.33
7	3305-639	AXLE SHAFT RR	1	$298.95
8	3304-294	HUB ASSY RR	1	$252.95
9	3304-424	OIL SEAL 52627	1	$12.35
10	3304-688	BEARING BALL RADIAL 6008	1	$79.95
11	3305-593	SPACER, REAR AXLE	1	$26.95
12	3304-415	RING SNAP	1	$1.92
13	3304-687	BOLT FLANGE 8*25	1	$3.02
14	3304-518	R/B 3307-657	1	$0.95
15	3304-305	BRKT ASSY RR CALIPER	1	$102.95
16	3305-259	O-RING,76*3	1	$6.47
17	3304-519	CIRCLIP	1	$13.73
18	3304-304	COLLAR RR CALIPER BRKT	1	$3.71
19	3304-015	BOLT STEP HOLDER 8*24	1	$2.33
20	3304-300	HUB BRAKE DISK	1	$102.95
21	3304-301	DISK RR BRK	1	$108.95
22	3304-343	COLLAR RR SHAFT	1	$10.97
23	3304-342	NUT RR SHAFT	1	$13.73
25	3306-194	CALIPER ASSY RR	1	$405.95
26	3304-318	COVER DUST	1	$13.73
27	3303-608	PIN LOCK 8MM	1	$1.37
28	3304-325	PIN HANGER	1	$6.89
29	3304-174	R/B 3304-565	1	$1.95
30	3304-303	CAP BLEEDER	1	$3.02
31	3304-302	SCREW BLEEDER	1	$3.30
32	3304-333	PLUG	1	$1.95
33	3304-696	SPRING PAD	1	$6.47
34	3304-695	BRACKET-RR	1	$30.95
35	3304-697	PAD ASSY	1	$47.95
36	3305-262	PISTON, CALIPER	1	$16.49
37	3306-585	DUST SEAL	1	$5.65
38	3305-380	SEAL PISTON (FOOT BRAKE)	1	$16.49
39	3306-195	PISTON	1	$16.49
40	3306-196	DUST SEAL	1	$5.78
41	3306-191	SEAL PISTON	1	$16.49
42	3304-440	SOCKET BOLT	1	$6.47
