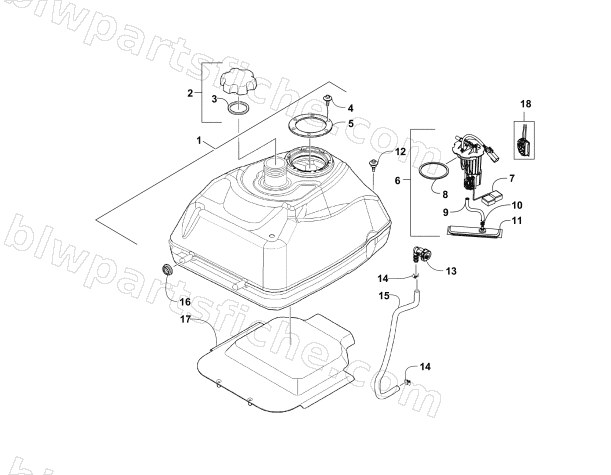

GAS TANK ASSEMBLY
2015 450
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-403 | TANK,FUEL-ASSEMBLY (425 NA) | 1 | $507.95 | |
| 2 | 3306-297 | CAP ASSY FUEL TANK | 1 | $30.95 | |
| 4 | 3306-300 | BOLT WASHER 5*16 | 1 | $2.61 | |
| 5 | 3306-299 | MOUNT FUEL PUMP | 1 | $6.47 | |
| 7 | 2670-235 | FLOAT,FUEL PUMP-WALBRO 75-22 | 1 | $6.89 | |
| 8 | 3313-845 | SEAL | 1 | $12.35 | |
| 10 | 3307-079 | CLIP 12.5 | 1 | $5.09 | |
| 11 | 3307-077 | FUEL FILTER | 1 | $54.95 | |
| 12 | 0423-732 | SCREW,FUEL TANK | 1 | $2.61 | |
| 13 | 1670-878 | FITTING,QUICK CONNECTOR-3/8X5/16X90 DEG | 1 | $16.49 | |
| 14 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 15 | 3307-078 | TUBE FUEL | 1 | $54.95 | |
| 16 | 0423-460 | GROMMET, FUEL TANK | 1 | $4.26 | |
| 17 | 3313-833 | SHIELD,FUEL TANK | 1 | $33.95 |
