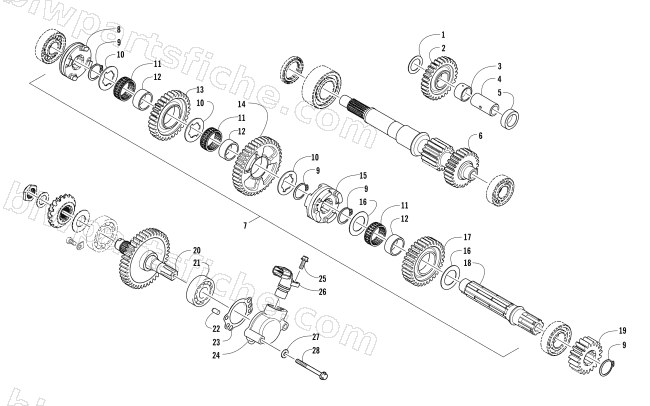

SECONDARY TRANSMISSION ASSEMBLY
2015 450
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0828-081 | WASHER,THRUST SECONDARY TRANSMISSION | 1 | $1.50 | |
| 2 | 0822-061 | GEAR,REVERSE IDLE-28T | 1 | $126.95 | |
| 3 | 0822-065 | BUSHING,REVERSE IDLER GEAR | 1 | $20.63 | |
| 4 | 0822-064 | SHAFT,REVERSE IDLER | 1 | $33.95 | |
| 5 | 0822-029 | SPACER, REVERSE IDLE GEAR | 1 | $16.49 | |
| 6 | 0822-128 | SHAFT,DRIVE | 1 | $357.95 | |
| 7 | 0822-129 | SHAFT ASSY, COUNTER | 1 | $920.95 | |
| 8 | 0822-033 | DOG, REVERSE DRIVEN GEAR | 1 | $82.95 | |
| 9 | 3304-147 | CIR CLIP EX 25MM | 1 | $1.64 | |
| 10 | 3304-045 | WASHER SPLINE 25MM | 1 | $2.06 | |
| 11 | 0832-038 | BEARING,NEEDLE ROLLER | 1 | $26.95 | |
| 12 | 0822-062 | BUSHING | 1 | $16.49 | |
| 13 | 0822-032 | GEAR,REVERSE DRIVEN | 1 | $156.95 | |
| 14 | 0822-063 | GEAR,DRIVEN-LOW | 1 | $169.95 | |
| 15 | 0822-027 | DOG,SLIDING | 1 | $102.95 | |
| 16 | 3304-044 | WASHER THRUST 25MM | 1 | $2.06 | |
| 17 | 0818-119 | GEAR,FORWARD DRIVEN 32T | 1 | $371.95 | |
| 18 | 0822-025 | COUNTERSHAFT | 1 | $112.95 | |
| 19 | 0822-028 | GEAR, DRIVE - NO. 2 | 1 | $114.95 | |
| 20 | 0822-023 | SHAFT,OUTPUT-ASSY | 1 | $309.95 | |
| 21 | 3304-198 | BRG BALL RADIAL 6304/20*52*15 | 1 | $26.95 | |
| 22 | 3303-395 | ROLLER 6*10 | 1 | $1.78 | |
| 23 | 0830-156 | GASKET,SPEEDO | 1 | $3.16 | |
| 24 | 0822-105 | HOUSING,SPEEDO SENSOR | 1 | $23.39 | |
| 25 | 3303-382 | BOLT FLANGE 6*16MM | 1 | $0.81 | |
| 26 | 3313-172 | SENSOR SPEED | 1 | $260.95 | |
| 27 | 0830-155 | SEAL,FASTENER | 1 | $3.16 | |
| 28 | 3303-387 | BOLT FLANGE SH 6*45 | 1 | $3.95 |
