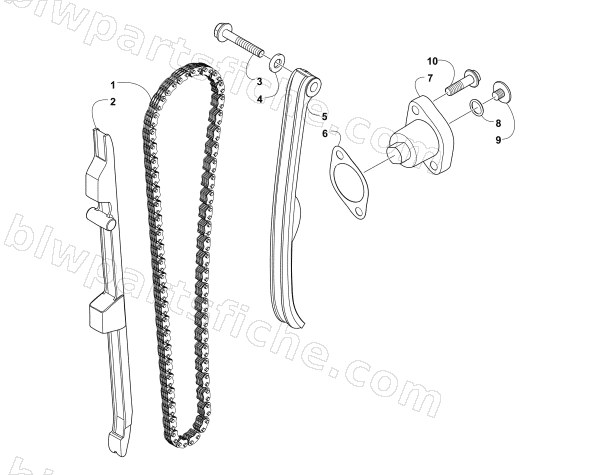

CAM CHAIN ASSEMBLY
2015 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0810-005 | R/B 3313-890 | 1 | $122.95 | |
| 2 | 0810-068 | GUIDE COMP, CAM CHAIN | 1 | $30.95 | |
| 3 | 0826-133 | SCREW,CAP HH SHOULDER-(M8X1.25X40) | 1 | $3.57 | |
| 4 | 0830-150 | WASHER,CRUSH-(12.8 X 8.2 X 1) | 1 | $2.06 | |
| 5 | 0810-007 | TENSIONER, CAM CHAIN | 1 | $47.95 | |
| 6 | 3303-035 | GASKET TENSIONER LIFTER | 1 | $3.44 | |
| 7 | 3307-102 | LIFTER ASSY TENSIONER | 1 | $42.95 | |
| 8 | 3304-100 | O-RING 1.5*9.5 | 1 | $1.78 | |
| 10 | 3303-360 | BOLT FLANGE 6*25 | 1 | $0.81 |
