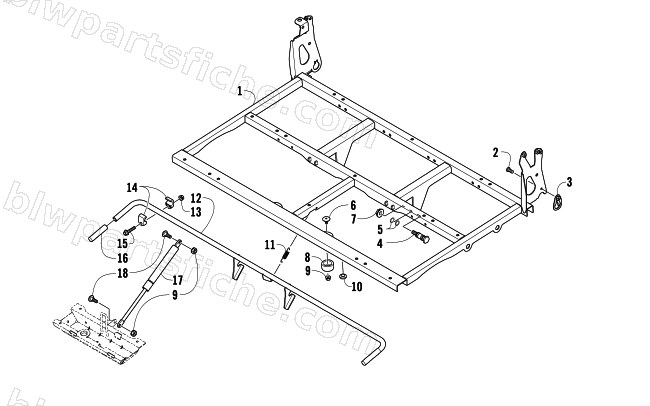

TILT FRAME ASSEMBLY
2015 700 TBX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-175 | FRAME,TILT-BLACK | 1 | $473.95 | |
| 2 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 3 | 1506-539 | BRACKET,TAILGATE-BLACK | 1 | $20.63 | |
| 4 | 0423-433 | PIN, PIVOT-CARGO BOX | 1 | $20.63 | |
| 5 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 6 | 0423-130 | SCREW,FUEL TANK | 1 | $5.65 | |
| 7 | 0423-388 | NUT,HEX FL M12-1.75 | 1 | $0.95 | |
| 8 | 1506-593 | BUMPER,TILT BOX | 1 | $3.30 | |
| 9 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 10 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 11 | 0423-569 | SPRING,EXTENSION | 1 | $30.95 | |
| 12 | 1506-528 | LATCH,TILT BOX-BLACK | 1 | $94.95 | |
| 13 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 14 | 1406-674 | BUSHING,PIVOT | 1 | $4.82 | |
| 15 | 8408-840 | SCREW,CAP-HFH M8X1.25X40 CL8.8 Z&Y | 1 | $1.23 | |
| 16 | 1406-736 | GRIP, LATCH ROD | 1 | $3.71 | |
| 17 | 2506-194 | SUPPORT,LIFT | 1 | $69.95 | |
| 18 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 |
