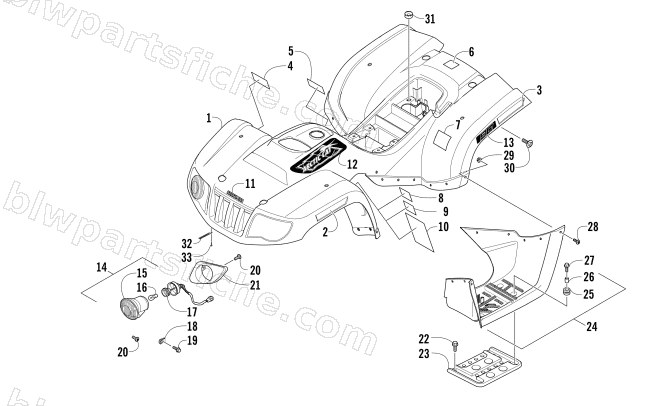

2015 Arctic Cat 90 2X4 UTILITY — BODY PANEL AND HEADLIGHT ASSEMBLY

2015 90 2X4 UTILITY

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3306-101	BODY PANEL-RED W/DECALS	1	$292.95
2	1411-180	REFLECTOR,FRONT-RH	1	$13.73
2	1411-181	REFLECTOR,FRONT-LH	1	$13.73
3	1411-178	REFLECTOR,REAR-RH	1	$13.73
3	1411-179	REFLECTOR,REAR-LH	1	$13.73
4	0411-836	DECAL,WARNING HILL (MINI)	1	$82.95
5	1411-577	DECAL,WARNING-OFF ROAD ONLY	1	$50.95
6	1411-809	DECAL,WARNING-PASSENGER	1	$3.30
7	1411-938	DECAL,WARNING-TIRE/LOAD (MINI)	1	$12.35
8	2411-162	DECAL,CAUTION LEAD CONTENT	1	$10.97
9	2411-137	DECAL,WARNING-AGE(12)	1	$22.01
10	1411-932	DECAL,WARNING-GENERAL	1	$12.35
11	2411-465	DECAL,"ARCTIC CAT"	1	$5.65
14	3305-976	LIGHT ASSY HEAD	1	$144.95
15	3305-977	UNIT HEAD LIGHT	1	$100.95
16	3305-827	BULB,HEADLIGHT	1	$30.95
17	3305-978	SOCKET COMP	1	$30.95
18	3304-061	NUT CLIP 5MM	1	$2.33
19	3305-828	BOLT,PAN 5*10	1	$1.23
20	3304-123	SCREW WASHER 4MM	1	$0.81
21	3305-898	COVER,HEADLIGHT RH - RED	1	$12.35
21	3305-899	COVER,HEADLIGHT LH - RED	1	$12.35
22	3304-543	BOLT FLANGE 8*16	1	$1.50
23	3304-494	FOOTREST-RH	1	$37.95
23	3304-495	FOOTREST-LH	1	$37.95
24	3306-144	MUDGUARD ASSY R FLOOR	1	$82.95
24	3306-145	MUDGUARD ASSY L FLOOR	1	$82.95
25	3303-227	RUBBER WIND SCREEN	1	$1.92
26	3303-233	COLLAR FLOOR	1	$2.33
27	3304-586	BOLT WASHER 6*20	1	$1.23
28	3305-703	SCREW SPECIAL 6*20	1	$1.78
29	3304-431	NUT LOCK	1	$1.23
30	3304-587	BOLT WASHER 6*16	1	$1.23
31	3303-232	RUBBER REAR FENDER	1	$1.92
32	3304-156	CLIP 2*70	1	$1.92
33	3304-651	SCREW TAPPING 4*12	1	$1.09
