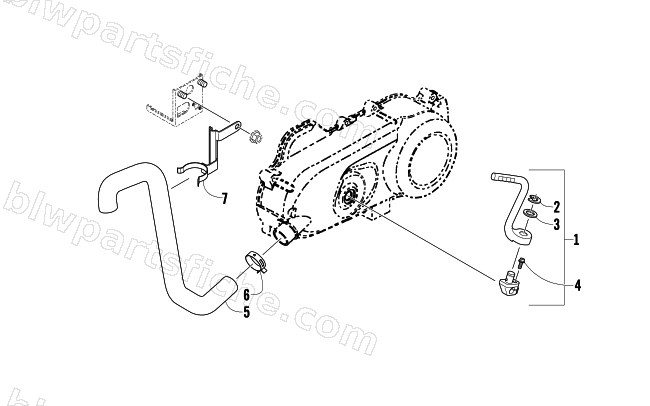

2015 Arctic Cat 90 2X4 UTILITY — KICK STARTER AND COOLING DUCT ASSEMBLY
2015 90 2X4 UTILITY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-123 | ARM ASSY KICK STARTER | 1 | $54.95 | |
| 2 | 3305-247 | E-RING 10mm | 1 | $1.78 | |
| 3 | 3305-195 | WASHER PLAIN 13MM | 1 | $0.81 | |
| 4 | 3304-551 | BOLT FLANGE 6*22 | 1 | $0.81 | |
| 5 | 3303-010 | DUCT L COVER | 1 | $23.39 | |
| 6 | 3303-074 | CLIP HOSE | 1 | $3.16 | |
| 7 | 3303-287 | BAND ASSY AIR/C TUBE | 1 | $8.21 |
