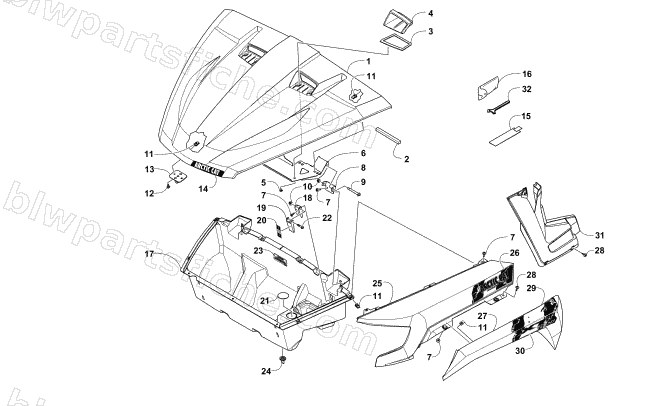

2015 Arctic Cat PROWLER 1000 XT — HOOD/FRONT STORAGE AND SIDE PANEL ASSEMBLY
2015 PROWLER 1000 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-973 | PANEL,HOOD - BLK(S) | 1 | $429.95 | |
| 2 | 4406-886 | SEAL,HOOD | 1 | $6.89 | |
| 4 | 4406-620 | HOOD SCOOP, RH | 1 | $16.49 | |
| 4 | 4406-621 | HOOD SCOOP, LH | 1 | $16.49 | |
| 5 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 6 | 7506-173 | HOOD,HINGE-PTD BLK | 1 | $156.95 | |
| 7 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 9 | 1423-289 | SCREW,SHOULDER M6 X 1.0(8D X 60L) | 1 | $8.21 | |
| 10 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 11 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 12 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 13 | 5506-906 | HOOK, HOOD LATCH, WELDT | 1 | $19.25 | |
| 14 | 4411-571 | DECAL,HOOD-FRONT-BLK (ARCTIC CAT) | 1 | $3.30 | |
| 15 | 0707-582 | RETAINER, DRIVE BELT-VELCRO | 1 | $17.87 | |
| 16 | 2516-863 | KIT,TOOL-HDX | 1 | $69.95 | |
| 17 | 4406-615 | BOX,FRONT STORAGE | 1 | $122.95 | |
| 18 | 4406-696 | R/B 8506-839 | 1 | $6.95 | |
| 19 | 4406-829 | R/B 8506-840 | 1 | $7.95 | |
| 20 | 4411-970 | DECAL,HOOD PROP | 1 | $4.95 | |
| 21 | 0623-600 | PLUG,BELLYPAN-2.00 | 1 | $4.82 | |
| 22 | 1423-288 | SCREW,SHOULDER M6 X 1.0(8D X 35L) | 1 | $17.87 | |
| 23 | 4411-553 | DECAL,CAUTION LOAD CAPACITY (25LB) | 1 | $3.30 | |
| 24 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 25 | 5506-956 | FENDER,FR RH INNER-ORG (S) | 1 | $244.95 | |
| 25 | 5506-957 | FENDER,FR LH INNER-ORG (S) | 1 | $244.95 | |
| 25 | 5506-936 | FENDER, FR RH INNER-BLK (S) | 1 | $163.95 | |
| 25 | 5506-937 | FENDER, FR LH INNER-BLK (S) | 1 | $163.95 | |
| 25 | 5506-952 | FENDER, FR RH INNER-RED (S) | 1 | $187.95 | |
| 25 | 5506-953 | FENDER, FR LH INNER-RED (S) | 1 | $187.95 | |
| 26 | 4411-708 | DECAL,HOOD SIDE RH-(PRLR XT ORG) | 1 | $13.73 | |
| 26 | 4411-709 | DECAL,HOOD SIDE LH-(PRLR XT ORG) | 1 | $13.73 | |
| 26 | 4411-770 | DECAL,HOOD SIDE RH-(PRLR XT BLK) | 1 | $13.73 | |
| 26 | 4411-771 | DECAL,HOOD SIDE LH-(PRLR XT BLK) | 1 | $13.73 | |
| 26 | 4411-696 | DECAL,HOOD SIDE RH-(PRLR XT RED) | 1 | $13.73 | |
| 26 | 4411-697 | DECAL,HOOD SIDE LH-(PRLR XT RED) | 1 | $13.73 | |
| 27 | 5506-958 | FENDER,FR RH OUTER-ORG (S) | 1 | $143.95 | |
| 27 | 5506-959 | FENDER,FR LH OUTER-ORG (S) | 1 | $148.95 | |
| 27 | 5506-938 | FENDER, FR RH OUTER-BLK (S) | 1 | $148.95 | |
| 27 | 5506-939 | FENDER, FR LH OUTER-BLK (S) | 1 | $148.95 | |
| 27 | 5506-954 | FENDER, FR RH OUTER-RED (S) | 1 | $148.95 | |
| 27 | 5506-955 | FENDER, FR LH OUTER-RED (S) | 1 | $148.95 | |
| 28 | 1423-198 | SCREW,MACH-TSBWH M6X 1.0 TRILOBE BLK | 1 | $0.95 | |
| 29 | 4411-850 | DECAL,FRONT FENDER UPR-RH(PRLR XT)ORG | 1 | $13.73 | |
| 29 | 4411-851 | DECAL,FRONT FENDER UPR-LH(PRLR XT)ORG | 1 | $13.73 | |
| 29 | 4411-862 | DECAL,FENDER FR UPR-RH (HDX XT) | 1 | $13.73 | |
| 29 | 4411-863 | DECAL,FENDER FR UPR-LH (HDX XT) | 1 | $13.73 | |
| 29 | 4411-848 | DECAL,FENDER FR UPR-RH(XT)RED | 1 | $13.73 | |
| 29 | 4411-849 | DECAL,FENDER FR UPR-LH(XT) RED | 1 | $13.73 | |
| 30 | 4411-710 | DECAL,FENDER FR LWR RH-1000 ORG/BLK(S) | 1 | $13.73 | |
| 30 | 4411-711 | DECAL,FENDER FR LWR LH-1000 ORG/BLK(S) | 1 | $13.73 | |
| 30 | 4411-700 | DECAL,FENDER FR LWR RH-1000 BLK(S) | 1 | $20.63 | |
| 30 | 4411-701 | DECAL,FENDER FR LWR LH-1000 BLK(S) | 1 | $20.63 | |
| 30 | 4411-690 | DECAL,FENDER FR LWR RH-1000 RED(S) | 1 | $20.63 | |
| 30 | 4411-691 | DECAL,FENDER FR LWR LH-1000 RED(S) | 1 | $20.63 | |
| 31 | 4406-610 | PANEL,SIDE-FR-RH | 1 | $42.95 | |
| 31 | 4406-611 | PANEL,SIDE-FR-LH | 1 | $42.95 | |
| 32 | 0441-587 | WRENCH,SPANNER-66MM | 1 | $4.95 |
