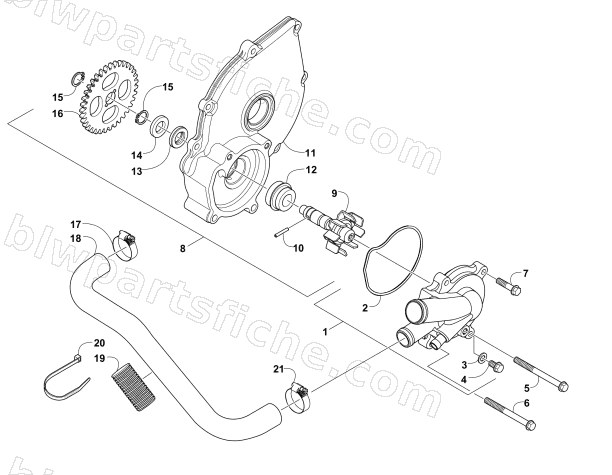

WATER PUMP ASSEMBLY
2015 PROWLER 500 HDX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0813-054 | COVER ASSY, WATER PUMP | 1 | $42.95 | |
| 2 | 0830-208 | RING,WATER PUMP | 1 | $5.65 | |
| 3 | 3304-049 | WASHER A 6MM | 1 | $0.81 | |
| 4 | 3304-186 | BOLT FLANGE SH 6*10 | 1 | $0.95 | |
| 5 | 0826-065 | ACS SCREW,HFH-M6-1x70 | 1 | $2.33 | |
| 6 | 0826-151 | BOLT FLANGE SH 6*65 (C) | 1 | $1.78 | |
| 7 | 3303-384 | BOLT FLANGE SH 6*25 | 1 | $0.81 | |
| 8 | 0813-051 | WATER PUMP ASSY, L COVER | 1 | $279.95 | |
| 9 | 0813-057 | IMPELLER SHAFT,WATER PUMP | 1 | $69.95 | |
| 10 | 0829-057 | ROLLER,3*19.8 | 1 | $1.50 | |
| 11 | 0806-123 | COVER,L COVER | 1 | $122.95 | |
| 12 | 3305-940 | SEAL,MECHANICAL | 1 | $30.95 | |
| 13 | 0830-207 | OIL SEAL 13.7*24*5 | 1 | $4.26 | |
| 14 | 0828-130 | WASHER,THRUST 14MM | 1 | $3.02 | |
| 15 | 0831-089 | CIR CLIP EX 14 | 1 | $1.64 | |
| 16 | 0811-037 | GEAR,WATER PUMP DRIVEN | 1 | $69.95 | |
| 17 | 1423-008 | CLAMP D27.5 | 1 | $8.21 | |
| 18 | 0410-216 | HOSE,WATER B | 1 | $33.95 | |
| 19 | 1619-453 | CONDUIT,FLEXIBLE-HIGH TEMP-.750ID X 37" | 1 | $37.95 | |
| 20 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 21 | 3305-941 | CLAMP,D28 | 1 | $6.20 |
