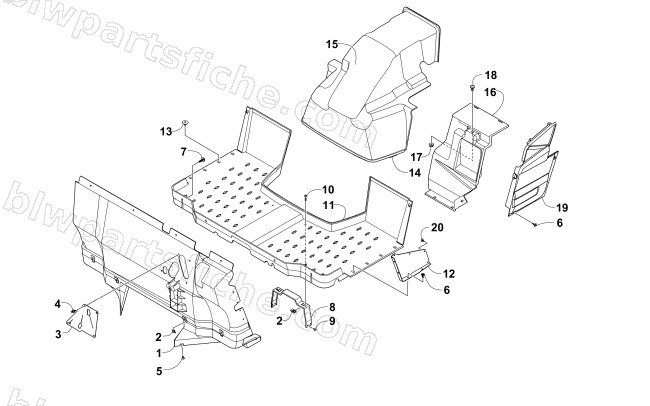

CONSOLE AND FLOOR PANEL ASSEMBLY
2015 PROWLER 550 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4406-686 | PANEL,FENDER-INNER | 1 | $212.95 | |
| 2 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 3 | 0405-538 | BOOT,STEERING(NONPWR) & PEDAL | 1 | $5.09 | |
| 4 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 5 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 6 | 1423-198 | SCREW,MACH-TSBWH M6X 1.0 TRILOBE BLK | 1 | $0.95 | |
| 7 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 8 | 2516-313 | BRACKET,FLOOR SUPPORT-PAINTED | 1 | $42.95 | |
| 9 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 10 | 8468-670 | SCREW,MACH-TSPNH M6X1.0X70 CL8.8 BLK | 1 | $3.02 | |
| 11 | 2416-085 | R/B 5406-460 | 1 | $539.95 | |
| 12 | 7506-100 | BRKT,KICK PANEL MTG-RH-PTD | 1 | $20.63 | |
| 12 | 7506-101 | BRKT,KICK PANEL MTG-LH-PTD | 1 | $20.63 | |
| 13 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 15 | 9611-751 | DECAL,EMBLEM-CHROME | 1 | $42.95 | |
| 16 | 2416-270 | PANEL,SPLASH-REAR-RH | 1 | $66.95 | |
| 16 | 2416-271 | PANEL,SPLASH-REAR-LH | 1 | $50.95 | |
| 17 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 18 | 1423-133 | SCREW,SHOULDER 11 X 3.5 X 6MM | 1 | $3.44 | |
| 19 | 4406-612 | PANEL,SIDE-RR-RH | 1 | $66.95 | |
| 19 | 4406-613 | PANEL,SIDE-RR-LH | 1 | $50.95 | |
| 20 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 |
