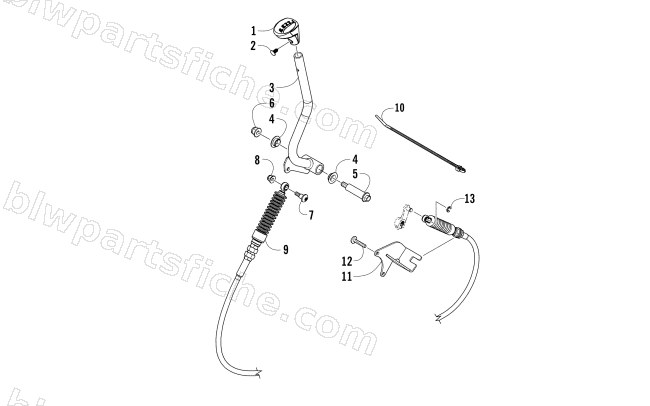

2015 Arctic Cat PROWLER 700 XT — SHIFTER ASSEMBLY
2015 PROWLER 700 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4406-625 | KNOB,SHIFT | 1 | $58.95 | |
| 2 | 0423-345 | CLIP,PUSH | 1 | $0.95 | |
| 3 | 2502-230 | LEVER,SHIFT-MACH (BLACK) | 1 | $64.95 | |
| 4 | 2402-213 | BUSHING (.5 ID X .594 OD X .25 L) | 1 | $2.33 | |
| 5 | 0423-505 | SCREW,SHOULDER-M8-1.25X45 | 1 | $1.78 | |
| 6 | 8427-805 | NUT,HEX FLG-NYLOCK M8X1.25 CL8 RIE BLACK | 1 | $1.09 | |
| 7 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 8 | 8427-605 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 RIE BLK | 1 | $1.50 | |
| 9 | 0487-099 | CABLE, SHIFT-HEAVY DUTY (H1 PRLR R) | 1 | $126.95 | |
| 10 | 0423-075 | TIE,CABLE-PUSH MOUNT | 1 | $0.95 | |
| 11 | 4406-957 | BRACKET,SHIFT CABLE ENGINE MTG | 1 | $16.49 | |
| 12 | 8468-645 | SCREW,MACH-TSPNH M6X1.0X45 CL8.8 BLK | 1 | $1.23 | |
| 13 | 0124-057 | E-RING | 1 | $1.64 |
