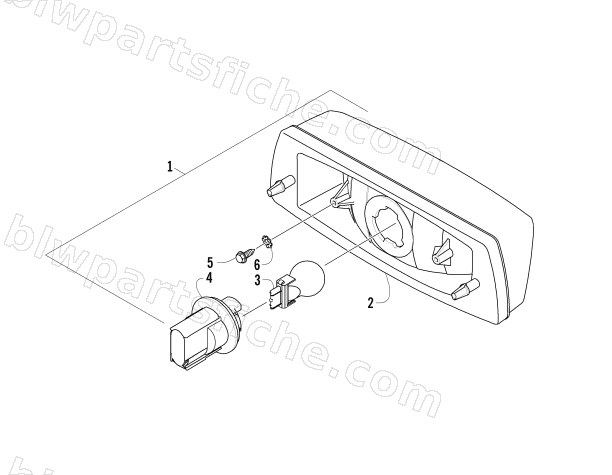

TAILLIGHT ASSEMBLY

2015 TRV 1000 XT

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	0509-022	TAILLIGHT,ASSY	1	$82.95
2	0509-025	HOUSING,TAILLIGHT-ASSY	1	$66.95
3	0409-056	BULB,TAIL LIGHT-3157	1	$19.25
4	0409-057	SOCKET,TAIL LIGHT	1	$15.11
5	0623-301	SCREW,SELF TAP-HWH 10X1/2 AB Z&Y	1	$0.12
6	8053-212	WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y	1	$0.12
