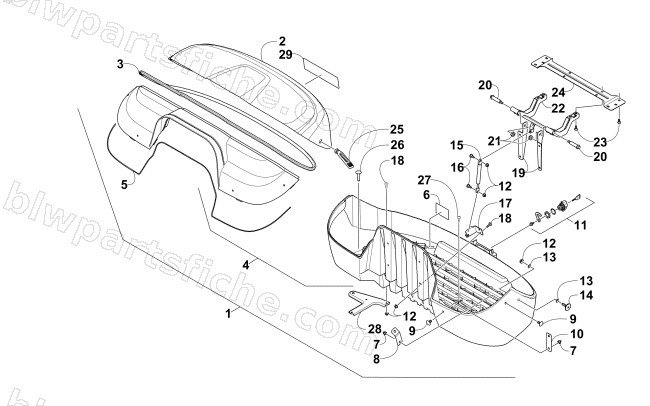

STORAGE BOX ASSEMBLY
2015 TRV 550 LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-874 | BOX,STORAGE-VIBE MET RED-ASSY W/PKG | 1 | $1,033.95 | |
| 1 | 4506-345 | BOX,STORAGE G.M. BLUE-ASSY - W/PKG | 1 | $799.95 | |
| 2 | 4506-961 | LID,STORAGE BOX-VIBE MET RED-RTD-PTD | 1 | $509.95 | |
| 2 | 4506-426 | LID,STORAGE BOX-G.M.BLUE-RTD-PTD | 1 | $279.95 | |
| 3 | 2406-787 | SEAL,LID-STORAGE BOX | 1 | $64.95 | |
| 4 | 4506-958 | BOTTOM,TOP-STORAGE BOX ASSY-VIBE MET RED | 1 | $799.95 | |
| 4 | 4506-445 | BOTTOM,TOP-STORAGE BOX ASSY-G.M.BLUE | 1 | $799.95 | |
| 5 | 2406-793 | SEAL,TOP-STORAGE BOX | 1 | $10.97 | |
| 6 | 1411-877 | DECAL,WARNING STORAGE BOX | 1 | $15.11 | |
| 7 | 0423-901 | NUT,HEX DOMED-M6 X 1.0 | 1 | $0.95 | |
| 8 | 2516-117 | PLATE,MOUNTING-STORAGE BOX-PTD | 1 | $13.73 | |
| 9 | 0423-895 | BOLT,CARRIAGE-M6X13-Z&B | 1 | $2.06 | |
| 10 | 2516-116 | PLATE,MOUNTING-STORAGE BOX-PTD | 1 | $13.73 | |
| 11 | 2416-209 | LATCH,LID (STORAGE BOX) | 1 | $54.95 | |
| 12 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 12 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 13 | 8050-223 | WASHER,FLAT (STD) 1/4 DIA BLK | 1 | $0.26 | |
| 14 | 1423-060 | SCREW,SHOULDER TSTRH M6X1.0X25 RIE BL | 1 | $5.51 | |
| 15 | 2416-198 | SPRING,GAS-STORAGE BOX | 1 | $58.95 | |
| 16 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 17 | 2516-511 | BRACKET,SPRING-WLDMT | 1 | $50.95 | |
| 18 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 | |
| 19 | 2416-194 | HINGE,STATIONARY-RH | 1 | $17.87 | |
| 19 | 2416-195 | HINGE,STATIONARY-LH | 1 | $17.87 | |
| 20 | 0423-505 | SCREW,SHOULDER-M8-1.25X45 | 1 | $1.78 | |
| 21 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 22 | 2516-514 | HINGE,PIVOT-WLDMT | 1 | $107.95 | |
| 23 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 24 | 2516-555 | BRACE,LID - PTD BLACK (STORGE BOX) | 1 | $24.77 | |
| 25 | 1606-930 | STRAP, HOLDDOWN-HOOD | 1 | $12.35 | |
| 26 | 2406-843 | PLUG,BOTTOM-BOX-STORAGE | 1 | $3.71 | |
| 27 | 0423-889 | SCREW,CAP-SERR HFH M6 X 1.0 X 20 BLK | 1 | $2.06 | |
| 28 | 2506-926 | BRACKET,FLAG-SAFETY-PAINTED | 1 | $45.95 | |
| 29 | 1411-725 | DECAL,GRAPHIC-REAR (BLACK) | 1 | $4.95 |
