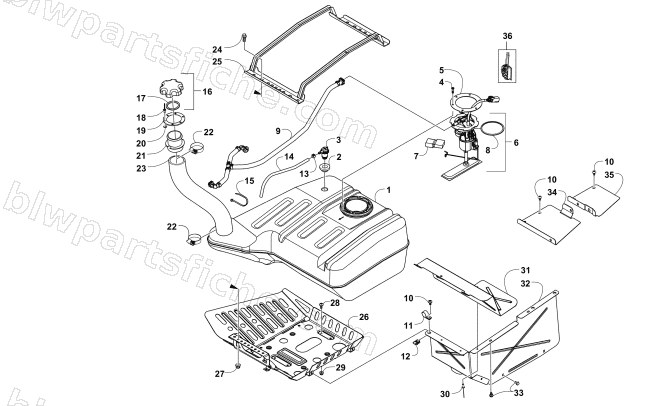

GAS TANK ASSEMBLY
2015 WILDCAT 4X LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0570-359 | TANK,FUEL-ASSEMBLY-WC (SERVICE PARTS) | 1 | $552.95 | |
| 2 | 1670-822 | GROMMET,3/4"-FUEL TANK | 1 | $3.85 | |
| 3 | 1670-787 | VALVE,CHECK | 1 | $34.95 | |
| 4 | 0423-898 | SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS | 1 | $0.54 | |
| 5 | 2670-042 | MOUNT,FUEL PUMP | 1 | $26.95 | |
| 6 | 0570-436 | FUEL PUMP KIT | 1 | $485.95 | |
| 7 | 2670-235 | FLOAT,FUEL PUMP-WALBRO 75-22 | 1 | $6.89 | |
| 8 | 0470-838 | SEAL,FUEL-PUMP | 1 | $3.16 | |
| 9 | 0570-343 | HOSE,FUEL-ASSEMBLY (EFI-H2) | 1 | $117.95 | |
| 10 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 11 | 1623-675 | CLAMP,CABLE,11/16 INSUL-1/4" MTG | 1 | $1.92 | |
| 12 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 13 | 0423-688 | CLAMP,SNAP-10 MM | 1 | $2.33 | |
| 14 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 15 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 15 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 16 | 2670-048 | CAP,FUEL TANK-91 OCTANE MINIMUM | 1 | $13.73 | |
| 17 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 18 | 8060-628 | RIVET,BLIND-DH AA66 BLK | 1 | $1.23 | |
| 20 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 21 | 0470-970 | NECK,FILL-REMOTE | 1 | $10.97 | |
| 22 | 0624-390 | CLAMP,HOSE- (262) 1.75/2..625 | 1 | $17.87 | |
| 23 | 0410-231 | HOSE,FILLER | 1 | $77.95 | |
| 24 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 25 | 0570-352 | STRAP,FUEL TANK-PTD BLACK | 1 | $58.95 | |
| 26 | 0570-371 | CRADLE,FUEL TANK-PTD BLACK | 1 | $213.95 | |
| 27 | 8427-805 | NUT,HEX FLG-NYLOCK M8X1.25 CL8 RIE BLACK | 1 | $1.09 | |
| 28 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 29 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 30 | 8060-602 | RIVET,BLIND-DH AD62AB5 PL | 1 | $0.68 | |
| 31 | 0412-632 | SHIELD, HEAT - UPPER | 1 | $41.95 | |
| 32 | 0412-633 | SHIELD, HEAT - LOWER | 1 | $77.95 | |
| 33 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 34 | 0412-808 | SHIELD,HEAT-UPPER | 1 | $26.95 | |
| 35 | 0412-818 | SHIELD, HEAT - UPPER | 1 | $16.49 |
