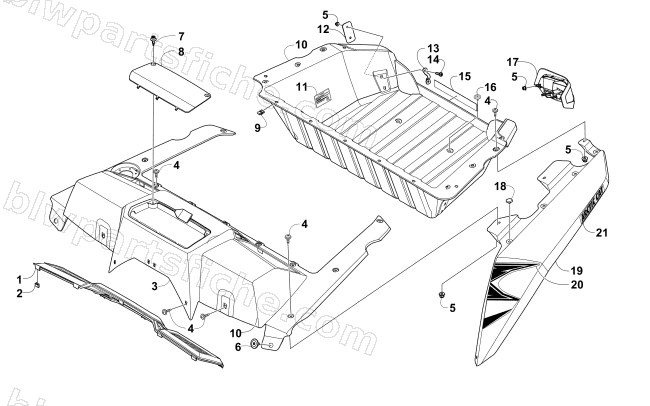

CARGO BOX AND TAILLIGHT ASSEMBLY
2015 WILDCAT 4X
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2416-956 | GRILLE,REAR | 1 | $41.95 | |
| 2 | 0123-987 | CLIP,U-TYPE | 1 | $0.68 | |
| 3 | 5506-155 | PANEL,COVER-REAR SLVR DLR WHT-PTD | 1 | $647.95 | |
| 4 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 5 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 6 | 1423-107 | SCREW, SHOULDER - M6 X 1.0 | 1 | $5.92 | |
| 7 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 8 | 2416-825 | PANEL,ACCESS-RADIATOR BLK | 1 | $15.11 | |
| 9 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 10 | 4406-167 | BOX,CARGO-REAR (W/DECALS) | 1 | $230.95 | |
| 11 | 4411-791 | DECAL,WARNING-CARGO | 1 | $4.95 | |
| 12 | 2416-573 | BRACKET, CARGO PLATE | 1 | $3.71 | |
| 13 | 4506-634 | BRACKET, CARGO STRAP-PTD BLACK | 1 | $8.21 | |
| 14 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 15 | 2411-944 | DECAL,REAR-FLAG | 1 | $26.95 | |
| 16 | 1423-109 | SCREW,SELF TAP-TSTRH MR6X1.0X16 | 1 | $2.75 | |
| 17 | 0509-056 | TAILLIGHT,RH-LED ASSY (012 WC) | 1 | $149.95 | |
| 17 | 0509-057 | TAILLIGHT,LH-LED ASSY (012 WC) | 1 | $149.95 | |
| 18 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 19 | 5506-148 | PANEL,FENDER-RR-RH SLVR DLR WHT-PTD | 1 | $212.95 | |
| 19 | 5506-149 | PANEL,FENDER-RR-LH SLVR DLR WHT-PTD | 1 | $212.95 | |
| 20 | 4411-546 | DECAL,REAR FENDER-RH-(VB) | 1 | $17.87 | |
| 20 | 4411-547 | DECAL,REAR FENDER-LH-(VB) | 1 | $17.87 | |
| 20 | 4411-586 | DECAL,REAR FENDER-RH-(WM) | 1 | $26.95 | |
| 20 | 4411-587 | DECAL,REAR FENDER-LH-(WM) | 1 | $26.95 | |
| 21 | 4411-254 | DECAL,FENDER RR 'ARCTIC CAT' (VB) | 1 | $1.78 | |
| 21 | 4411-277 | DECAL,FENDER RR 'ARCTIC CAT' (WM) | 1 | $1.78 |
