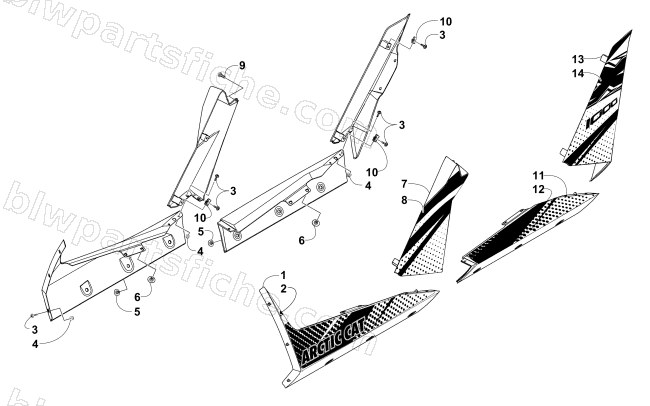

SIDE PANEL ASSEMBLY
2015 WILDCAT 4X
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2416-988 | PANEL,SIDE-LWR-RH-BLK | 1 | $50.95 | |
| 1 | 2416-989 | PANEL,SIDE-LWR-LH-BLK | 1 | $50.95 | |
| 2 | 4411-534 | DECAL,FRONT DOOR LWR-RH-(VB) | 1 | $79.95 | |
| 2 | 4411-574 | DECAL,SIDE FRONT LWR-RH-(WM) | 1 | $150.95 | |
| 2 | 4411-575 | DECAL,SIDE FRONT LWR-LH-(WM) | 1 | $150.95 | |
| 3 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 4 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 5 | 1423-133 | SCREW,SHOULDER 11 X 3.5 X 6MM | 1 | $3.44 | |
| 6 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 7 | 4406-174 | PANEL,SIDE-UPR-MID-RH-BLK | 1 | $37.95 | |
| 7 | 4406-175 | PANEL,SIDE-UPR-MID-LH-BLK | 1 | $37.95 | |
| 8 | 4411-536 | DECAL,FRONT PILLAR-RH-(VB) | 1 | $82.95 | |
| 8 | 4411-537 | DECAL,FRONT PILLAR-LH-(VB) | 1 | $82.95 | |
| 8 | 4411-576 | DECAL,FRONT PILLAR-RH-(WM) | 1 | $105.95 | |
| 8 | 4411-577 | DECAL,FRONT PILLAR-LH-(WM) | 1 | $105.95 | |
| 9 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 10 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 11 | 4506-844 | PANEL,REAR SIDE-LWR-RH-BLK | 1 | $37.95 | |
| 11 | 4506-845 | PANEL,REAR SIDE-LWR-LH-BLK | 1 | $37.95 | |
| 12 | 4411-538 | DECAL,SIDE LOWER RR-RH-(VB) | 1 | $42.95 | |
| 12 | 4411-539 | DECAL,SIDE LOWER RR-LH-(VB) | 1 | $42.95 | |
| 12 | 4411-578 | DECAL,SIDE LWR REAR-RH-(WM) | 1 | $50.95 | |
| 12 | 4411-579 | DECAL,SIDE LWR REAR-LH-(WM) | 1 | $50.95 | |
| 13 | 2416-990 | PANEL,SIDE-UPR-REAR-RH-BLK | 1 | $37.95 | |
| 13 | 2416-991 | PANEL,SIDE-UPR-REAR-LH-BLK | 1 | $37.95 | |
| 14 | 4411-540 | DECAL,REAR PILLAR-RH-(VB) | 1 | $105.95 | |
| 14 | 4411-541 | DECAL,REAR PILLAR-LH-(VB) | 1 | $105.95 | |
| 14 | 4411-580 | DECAL,REAR PILLAR-RH-(WM) | 1 | $105.95 | |
| 14 | 4411-581 | DECAL,REAR PILLAR-LH-(WM) | 1 | $105.95 |
