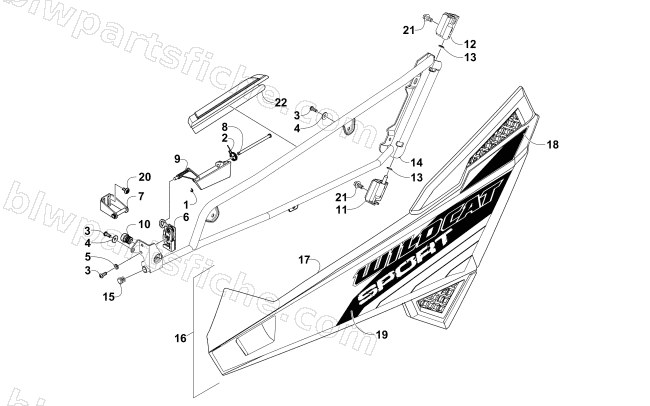

DOOR ASSEMBLY
2015 WILDCAT SPORT LIME
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1423-222 | CIRCLIP,BLK-MAGNI 575 COATING (6MM) | 1 | $1.92 | |
| 2 | 4406-420 | SPRING,LATCH HANDLE-RH | 1 | $1.78 | |
| 2 | 4406-421 | SPRING,LATCH HANDLE-LH | 1 | $1.78 | |
| 3 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 4 | 8050-223 | WASHER,FLAT (STD) 1/4 DIA BLK | 1 | $0.26 | |
| 5 | 8051-213 | R/B 8051-212 | 1 | $0.35 | |
| 6 | 4406-908 | LATCH,ROTARY (50203) | 1 | $101.95 | |
| 6 | 4406-909 | LATCH,ROTARY (50202) | 1 | $82.95 | |
| 7 | 4406-430 | PIN,ROTARY LATCH | 1 | $24.77 | |
| 8 | 4406-418 | PIN,LATCH HANDLE | 1 | $5.51 | |
| 9 | 4406-422 | HANDLE,DOOR-RH | 1 | $16.95 | |
| 9 | 4406-423 | HANDLE,DOOR-LH | 1 | $16.49 | |
| 10 | 4406-419 | BUMPER,DOOR STOPPER | 1 | $5.78 | |
| 11 | 4406-424 | HINGE,LOWER-RH | 1 | $39.95 | |
| 11 | 4406-425 | HINGE,LOWER-LH | 1 | $39.95 | |
| 12 | 4406-426 | HINGE,UPPER-RH | 1 | $39.95 | |
| 12 | 4406-427 | HINGE,UPPER-LH | 1 | $39.95 | |
| 13 | 1423-224 | BUSHING,DOOR HINGE | 1 | $5.23 | |
| 14 | 5506-250 | FRAME,DOOR-RH-BLK | 1 | $278.95 | |
| 14 | 5506-251 | FRAME,DOOR-LH-BLK | 1 | $278.95 | |
| 15 | 1423-225 | CAP,PLASTIC-3/8" TUBE | 1 | $2.33 | |
| 16 | 0518-230 | DOOR,PANEL W/ DECALS-LG-RH(WC SPORT) | 1 | $341.95 | |
| 16 | 0518-231 | DOOR,PANEL W/ DECALS-LG-LH(WC SPORT) | 1 | $341.95 | |
| 16 | 0518-228 | DOOR,PANEL W/ DECALS-R-RH(WC SPORT) | 1 | $341.95 | |
| 16 | 0518-229 | DOOR,PANEL W/ DECALS-R-LH(WC SPORT) | 1 | $341.95 | |
| 17 | 4406-324 | PANEL,DOOR-RH-BLK | 1 | $322.95 | |
| 17 | 4406-325 | PANEL,DOOR-LH-BLK | 1 | $322.95 | |
| 18 | 4411-430 | DECAL,DOOR UPR-RH (LM GRN) | 1 | $4.95 | |
| 18 | 4411-431 | DECAL,DOOR UPR-LH (LM GRN) | 1 | $4.95 | |
| 18 | 4411-424 | DECAL,DOOR UPR-RH (RED) | 1 | $4.95 | |
| 18 | 4411-425 | DECAL,DOOR UPR-LH (RED) | 1 | $4.95 | |
| 19 | 4411-428 | DECAL,DOOR-LWR-RH(LM GRN) | 1 | $66.95 | |
| 19 | 4411-429 | DECAL,DOOR-LWR-LH(LMGRN) | 1 | $66.95 | |
| 19 | 4411-422 | DECAL,DOOR-LWR-RH (RED) | 1 | $66.95 | |
| 19 | 4411-423 | DECAL,DOOR-LWR-LH (RED) | 1 | $66.95 | |
| 20 | 0826-029 | SCREW,MACH-TSPH M6 X1X12 W/ THD LOCK | 1 | $0.68 | |
| 21 | 8408-818 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y W/204 | 1 | $1.78 | |
| 22 | 4406-594 | PAD,DOOR | 1 | $37.95 |
