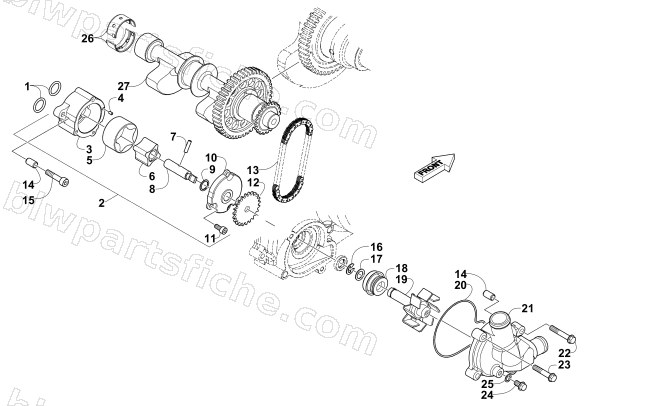

2015 Arctic Cat WILDCAT SPORT LIMITED — OIL PUMP AND WATER PUMP ASSEMBLIES
2015 WILDCAT SPORT LIMITED
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3307-035 | O-RING 14.8X2.4 | 1 | $4.54 | |
| 2 | 3307-013 | OIL PUMP ASSY | 1 | $100.95 | |
| 3 | 3307-019 | BODY, OIL PUMP | 1 | $37.95 | |
| 4 | 3307-036 | DOWEL PIN 3*5 | 1 | $3.02 | |
| 5 | 3307-020 | OUTER ROTOR OIL PUMP | 1 | $20.63 | |
| 6 | 3307-021 | INNER ROTOR OIL PUMP | 1 | $23.39 | |
| 7 | 0812-036 | PIN DRIVEN GEAR | 1 | $3.16 | |
| 8 | 3306-797 | SHAFT, OIL PUMP | 1 | $23.39 | |
| 9 | 3307-017 | WASHER 11.2X15X1.0 | 1 | $2.47 | |
| 10 | 3307-014 | COVER, OIL PUMP GEAR | 1 | $23.39 | |
| 11 | 3307-015 | SOCKET BOLT OIL PUMP COVER | 1 | $1.92 | |
| 12 | 3307-016 | SPROCKET, OIL PUMP DRIV | 1 | $17.87 | |
| 13 | 3307-018 | CHAIN, OIL PUMP | 1 | $33.95 | |
| 14 | 3303-341 | PIN DOWEL 8*14 | 1 | $2.33 | |
| 15 | 3303-398 | R/B 3307-113 | 1 | $1.95 | |
| 16 | 3307-038 | E RING 9 | 1 | $1.64 | |
| 17 | 3307-033 | WASHER THRUST 12M/M | 1 | $1.37 | |
| 18 | 3307-083 | SEAL,MECHANICAL | 1 | $47.95 | |
| 19 | 3307-024 | SHAFT ASSY, IMPELLER | 1 | $90.95 | |
| 20 | 3307-023 | O-RING, WATER PUMP | 1 | $6.20 | |
| 21 | 3306-798 | COVER ASSY,WATER PUMP | 1 | $47.95 | |
| 22 | 3303-385 | BOLT FLANGE SH 6*28 | 1 | $0.81 | |
| 23 | 3303-386 | BOLT FLANGE SH 6*35 | 1 | $2.06 | |
| 24 | 3304-186 | BOLT FLANGE SH 6*10 | 1 | $0.95 | |
| 25 | 3304-049 | WASHER A 6MM | 1 | $0.81 | |
| 26 | 3307-010 | BRG BALANCER SHAFT-BROWN (A) | 1 | $50.95 | |
| 27 | 3307-012 | SHAFT COMP, BALANCER | 1 | $729.95 |
