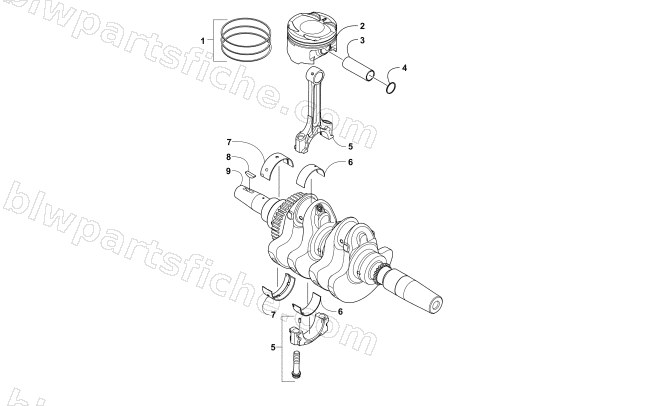

2015 Arctic Cat WILDCAT SPORT XT — CRANKSHAFT AND PISTON ASSEMBLY
2015 WILDCAT SPORT XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-992 | RING SET PISTON | 1 | $79.95 | |
| 2 | 3306-993 | PISTON | 1 | $156.95 | |
| 3 | 3306-994 | PIN PISTON | 1 | $16.49 | |
| 4 | 3307-009 | CLIP PISTON PIN | 1 | $3.02 | |
| 5 | 3306-995 | CONN ROD ASSY | 1 | $156.95 | |
| 6 | 3306-996 | BEARING CONN ROD-RED (1.495-1.498) | 1 | $26.95 | |
| 7 | 3307-011 | BRG CRANK SHAFT-RED (A) | 1 | $30.95 | |
| 8 | 0829-039 | KEY WAY ACG | 1 | $3.57 | |
| 9 | 3307-008 | CRANK SHAFT COMP | 1 | $1,110.95 |
