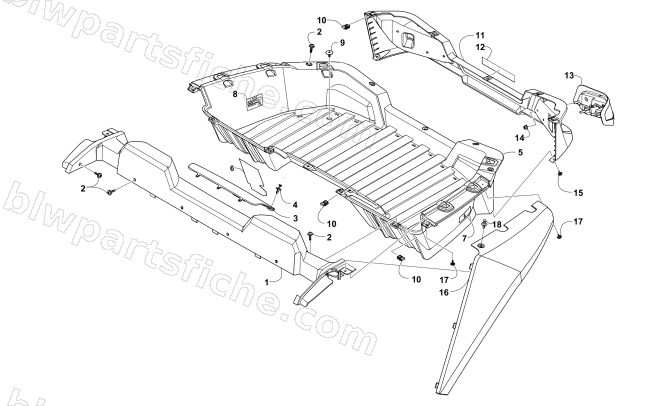

CARGO BOX AND TAILLIGHT ASSEMBLY
2015 WILDCAT SPORT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4406-382 | PANEL,HEADREST-RED | 1 | $108.95 | |
| 2 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 3 | 2416-825 | PANEL,ACCESS-RADIATOR BLK | 1 | $15.11 | |
| 4 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 5 | 5506-602 | R/B 7506-696 | 1 | $173.95 | |
| 7 | 2411-974 | REFLECTOR,REAR (WC) | 1 | $10.97 | |
| 8 | 4411-124 | R/B 5411-405 | 1 | $9.95 | |
| 9 | 1423-109 | SCREW,SELF TAP-TSTRH MR6X1.0X16 | 1 | $2.75 | |
| 10 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 11 | 4406-264 | FASCIA,REAR | 1 | $54.95 | |
| 12 | 2411-944 | DECAL,REAR-FLAG | 1 | $26.95 | |
| 13 | 0509-074 | TAILLIGHT,LED-RH-ASSY (WC50) | 1 | $93.95 | |
| 13 | 0509-075 | TAILLIGHT,LED-LH-ASSY (WC50) | 1 | $93.95 | |
| 14 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 15 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 16 | 4406-528 | FENDER,REAR-RH BLACK | 1 | $50.95 | |
| 16 | 4406-529 | FENDER,REAR-LH BLACK | 1 | $50.95 | |
| 17 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 18 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 |
