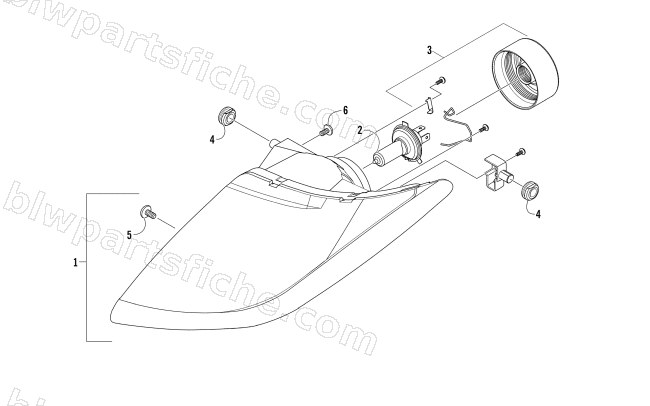

2015 Arctic Cat WILDCAT TRAIL XT — HEADLIGHT ASSEMBLY
2015 WILDCAT TRAIL XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0509-068 | HEADLIGHT,RH-ASSY (WC50) | 1 | $181.95 | |
| 1 | 0509-069 | HEADLIGHT,LH-ASSY (WC50) | 1 | $181.95 | |
| 2 | 0109-724 | R/B 0609-956 | 1 | $29.95 | |
| 3 | 0409-157 | KIT,REPAIR-HEADLIGHT (WC50) | 1 | $24.95 | |
| 4 | 1423-104 | GROMMET | 1 | $1.37 | |
| 5 | 8476-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&Y | 1 | $0.95 | |
| 6 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 |
