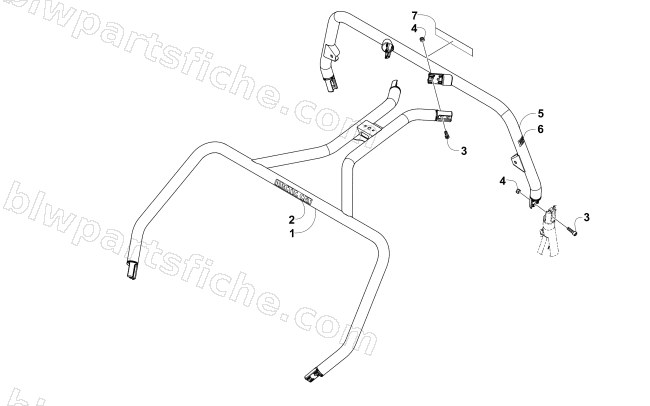

2015 Arctic Cat WILDCAT TRAIL XT — ROPS ASSEMBLY
2015 WILDCAT TRAIL XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-123 | R/B 8506-094 | 1 | $374.95 | |
| 2 | 0411-501 | DECAL,"ARCTIC CAT"-WHT | 1 | $3.30 | |
| 3 | 1423-140 | SCREW,CAP-HSH M10 X 1.25 X 35 | 1 | $1.78 | |
| 4 | 1423-161 | NUT,HEX LOCK-NSL M10X1.25 GR 8 DIN 985 | 1 | $0.68 | |
| 5 | 5506-607 | R/B 8506-099 | 1 | $282.95 | |
| 6 | 3411-970 | DECAL,WARNING-ROPS | 1 | $3.30 | |
| 7 | 4411-075 | DECAL,WILDCAT-WHT/BLK (REAR CANOPY) | 1 | $4.95 |
