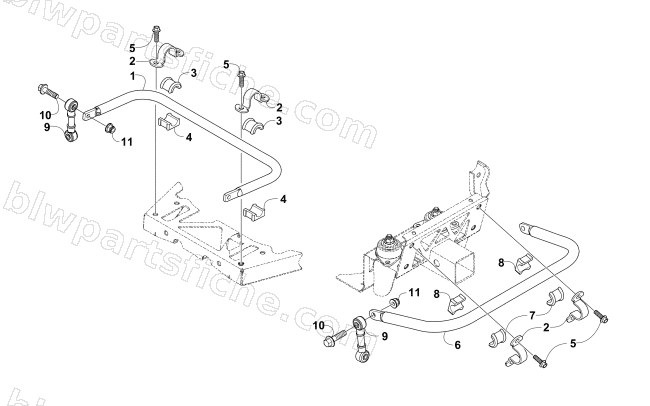

2015 Arctic Cat WILDCAT TRAIL XT — SWAY BAR ASSEMBLIES
2015 WILDCAT TRAIL XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0503-728 | SWAYBAR,FRONT-PTD BLACK | 1 | $126.95 | |
| 2 | 0404-135 | CLAMP,SWAYBAR BUSHING-BLACK | 1 | $19.25 | |
| 3 | 0404-094 | BUSHING,UPPER HALF-SWAYBAR | 1 | $5.92 | |
| 4 | 0404-095 | BUSHING,LOWER HALF-SWAYBAR | 1 | $5.92 | |
| 5 | 8409-016 | SCREW,CAP-HFH M10X1.25X16 CL10.9 Z&Y | 1 | $1.50 | |
| 6 | 0504-835 | SWAYBAR-REAR- PTD BLACK | 1 | $178.95 | |
| 7 | 0404-282 | BUSHING,SWAYBAR - UPPER HALF | 1 | $5.92 | |
| 8 | 0404-283 | BUSHING,SWAYBAR - LOWER HALF | 1 | $5.92 | |
| 9 | 3603-295 | LINK,SWAYBAR-WIDE RACE | 1 | $34.95 | |
| 10 | 8413-842 | SCREW,CAP-HFH M8X1.25X40 CL10.9 W/204 | 1 | $2.47 | |
| 11 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 |
