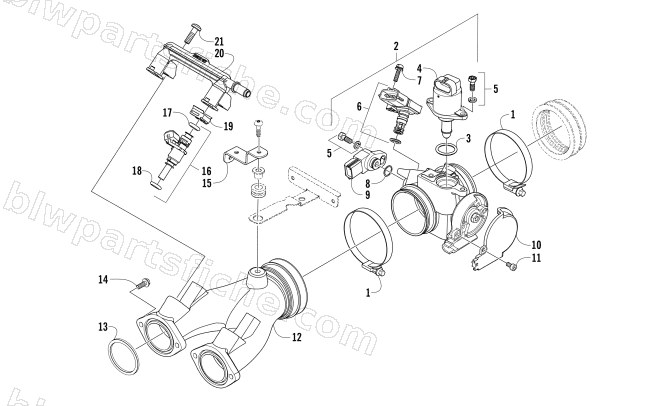

THROTTLE BODY ASSEMBLY
2015 WILDCAT TRAIL XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-018 | CLAMP,HOSE-WORM (NORMA 60-80) | 1 | $6.47 | |
| 2 | 0570-390 | R/B 0570-426 | 1 | $693.95 | |
| 3 | 0832-088 | SEAL,IDLE SPEED ACTUATOR | 1 | $1.78 | |
| 4 | 0824-054 | ACTUATOR,IDLE SPEED (ISA) | 1 | $212.95 | |
| 5 | 1423-081 | SCREW,MACH HH M5 X 0.8 X 12 W/ WASHER | 1 | $20.63 | |
| 6 | 0824-052 | SENSOR,T-MAP | 1 | $225.95 | |
| 7 | 1423-080 | SCREW,MACH PNPNH M4 X 0.7 X 12 W/ WASHER | 1 | $20.63 | |
| 8 | 3306-150 | O-RING | 1 | $1.50 | |
| 9 | 0824-067 | SENSOR,THROTTLE POSITION (TPS) | 1 | $153.95 | |
| 10 | 0470-961 | COVER,THROTTLE CABLE | 1 | $32.95 | |
| 11 | 1423-095 | SCREW,CAP-HSH M4 X 0.7 X 8 | 1 | $2.75 | |
| 12 | 0570-375 | MANIFOLD,INTAKE-WC50 | 1 | $156.95 | |
| 13 | 0470-531 | O-RING,INTAKE MANIFOLD | 1 | $3.16 | |
| 14 | 3303-383 | BOLT FLANGE SH 6*20 | 1 | $0.81 | |
| 15 | 1470-058 | BRACKET,INJECTOR (014 WC TRAIL) | 1 | $6.89 | |
| 16 | 3306-251 | R/B 0470-884 | 1 | $135.95 | |
| 17 | 3307-074 | O-RING A INJECTOR /BLACK | 1 | $12.35 | |
| 18 | 3307-075 | O-RING B INJECTOR /GREEN | 1 | $12.35 | |
| 19 | 3306-253 | CLIP SPRING FUEL INJECTOR | 1 | $4.82 | |
| 20 | 1470-009 | RAIL,FUEL | 1 | $54.95 | |
| 21 | 3303-382 | BOLT FLANGE 6*16MM | 1 | $0.81 |
