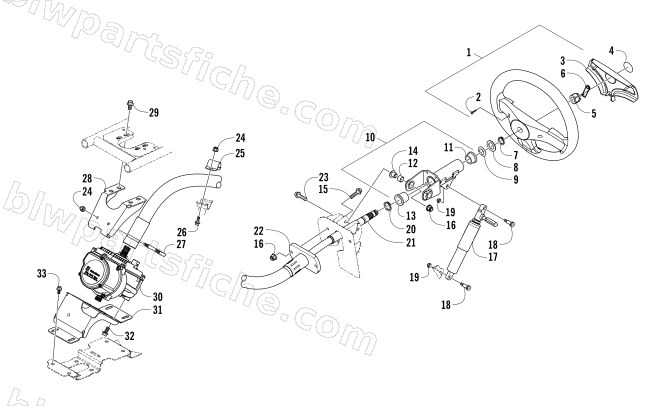

STEERING ASSEMBLY
2015 WILDCAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0502-884 | WHEEL,STEERING-ASSEMBLY | 1 | $174.95 | |
| 2 | 0423-613 | SCREW,SELF TAP-TSPNH#8-18X3/4 T-20 SS | 1 | $1.09 | |
| 3 | 0405-239 | COVER,WHEEL | 1 | $30.95 | |
| 4 | 1411-798 | DECAL,STEERING WHEEL | 1 | $10.97 | |
| 5 | 0423-884 | NUT,HEX-SLOTTED- M16 X 2 Z&C | 1 | $12.35 | |
| 6 | 1423-045 | CLIP,STEERING WHEEL | 1 | $2.06 | |
| 7 | 1423-110 | SNAP RING,3/4 EXT X .086 THK | 1 | $1.50 | |
| 8 | 0828-071 | WASHER,BELLEVILLE | 1 | $4.95 | |
| 9 | 0423-558 | WASHER(28X19X1) | 1 | $3.02 | |
| 10 | 0505-721 | TILT STEERING-SUB ASSY | 1 | $93.95 | |
| 11 | 0405-472 | BUSHING,TILT-REAR-ASSY | 1 | $10.97 | |
| 12 | 0405-405 | BUSHING, STEERING-TILT | 1 | $5.65 | |
| 13 | 0405-473 | BUSHING,TILT-FRONT-ASSY | 1 | $12.35 | |
| 14 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 15 | 8408-831 | SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353 | 1 | $0.95 | |
| 16 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 17 | 0405-468 | SPRING,GAS-TILT ASSY | 1 | $105.95 | |
| 18 | 1423-250 | SCREW, SHOULDER-HSH M6-1.0X8X16-RIE | 1 | $3.71 | |
| 19 | 0623-056 | NUT,LOCK M6X1 | 1 | $0.40 | |
| 20 | 1423-111 | SNAP RING,7/8 EXT X .086 THK | 1 | $1.78 | |
| 21 | 0405-403 | STEERING,INTERMEDIATE-SHAFT | 1 | $601.95 | |
| 22 | 0405-506 | BRKT,MOUNTING-STEERING SHAFT | 1 | $16.49 | |
| 23 | 8408-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 Z&Y | 1 | $0.95 | |
| 24 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 25 | 0505-765 | BRKT,SUPPORT-STRG SHAFT-UPPER-PTD BLK | 1 | $12.35 | |
| 26 | 8408-617 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 27 | 1423-203 | U-BOLT-M6X1.0X34.3 | 1 | $13.73 | |
| 28 | 0505-835 | BRKT,MTG-STEERING SHAFT-LOWER-PTD | 1 | $41.95 | |
| 29 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 30 | 0505-925 | R/B 0505-956 | 1 | $2,625.95 | |
| 31 | 4506-619 | BRKT,MTG-EPS-PTD BLK | 1 | $66.95 | |
| 32 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 33 | 8408-818 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y W/204 | 1 | $1.78 |
