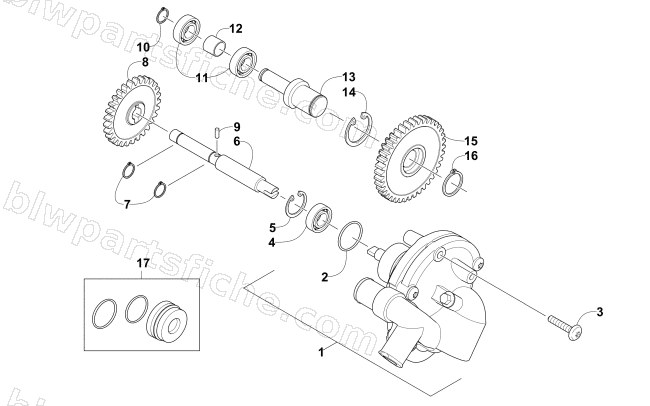

WATER PUMP ASSEMBLY
2015 WILDCAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0813-071 | WATERPUMP,ASSY-H2 | 1 | $272.95 | |
| 2 | 0830-029 | O-RING, 32.5 ID X 2 W | 1 | $1.64 | |
| 3 | 8468-650 | SCREW,MACH-TSPNH M6X1.0X50 CL8.8 BLK | 1 | $1.78 | |
| 4 | 0832-084 | BEARING,6201, 12 X 32 X 10 | 1 | $15.11 | |
| 5 | 0831-086 | CIRCLIP,SHAFT BEARING 33 | 1 | $1.23 | |
| 6 | 0813-041 | SHAFT,WATERPUMP-DRIVEN GEAR | 1 | $45.95 | |
| 7 | 0831-010 | RING, EXTERNAL RETAINING - DSH-12 | 1 | $1.50 | |
| 8 | 0813-043 | GEAR,DRIVEN,WATERPUMP-ID12 | 1 | $150.95 | |
| 9 | 0829-009 | PIN (4 X 16) | 1 | $2.06 | |
| 10 | 0831-002 | RING, EXTERNAL RETAINING - DSH-10 | 1 | $0.40 | |
| 11 | 0832-046 | BEARING,SHAFT | 1 | $16.49 | |
| 12 | 0813-028 | SPACER,IDLER-WATERPUMP | 1 | $5.92 | |
| 13 | 0813-060 | SHAFT,WATER/OIL PUMP | 1 | $47.95 | |
| 14 | 0831-004 | CIRCLIP, SHAFT BEARING | 1 | $3.44 | |
| 15 | 0813-061 | GEAR,IDLER-WATER PUMP (FLY) | 1 | $299.95 | |
| 16 | 0831-040 | RING, EXTERNAL RETAINING - DSH-17 | 1 | $0.40 | |
| 17 | 0837-010 | KIT,WATER PUMP SEAL | 1 | $39.95 |
