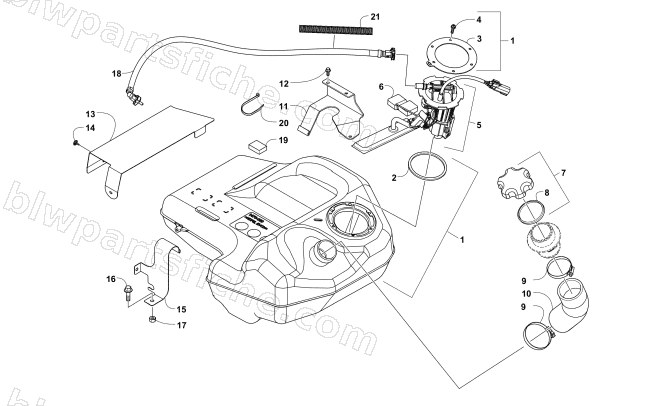

GAS TANK ASSEMBLY
2015 XR 550 LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0570-418 | TANK,FUEL-ASSEMBLY (SERVICE) | 1 | $509.95 | |
| 2 | 0470-838 | SEAL,FUEL-PUMP | 1 | $3.16 | |
| 3 | 2670-042 | MOUNT,FUEL PUMP | 1 | $26.95 | |
| 4 | 0423-898 | SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS | 1 | $0.54 | |
| 5 | 0570-430 | PUMP,FUEL-ASSEMBLY (SERVICE) | 1 | $799.95 | |
| 6 | 2670-235 | FLOAT,FUEL PUMP-WALBRO 75-22 | 1 | $6.89 | |
| 7 | 3306-297 | CAP ASSY FUEL TANK | 1 | $30.95 | |
| 8 | 3306-298 | GASKET,FUEL CAP | 1 | $23.39 | |
| 9 | 0624-390 | CLAMP,HOSE- (262) 1.75/2..625 | 1 | $17.87 | |
| 10 | 0410-192 | HOSE,FILLER-FUEL | 1 | $30.95 | |
| 11 | 1470-064 | BRKT,FUEL TANK-REAR | 1 | $29.95 | |
| 12 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 13 | 1470-070 | SHIELD,HEAT-TANK FUEL | 1 | $42.95 | |
| 14 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 15 | 7506-226 | BRKT,FUEL TANK-FRONT-PTD | 1 | $22.01 | |
| 16 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 17 | 8420-802 | NUT,HEX - M8 X 1.25 CL8 Z&Y | 1 | $0.41 | |
| 18 | 0410-193 | HOSE,FUEL LINE (H1) | 1 | $54.95 | |
| 19 | 1470-094 | FOAM,FUEL TANK | 1 | $1.09 | |
| 20 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 21 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 |
