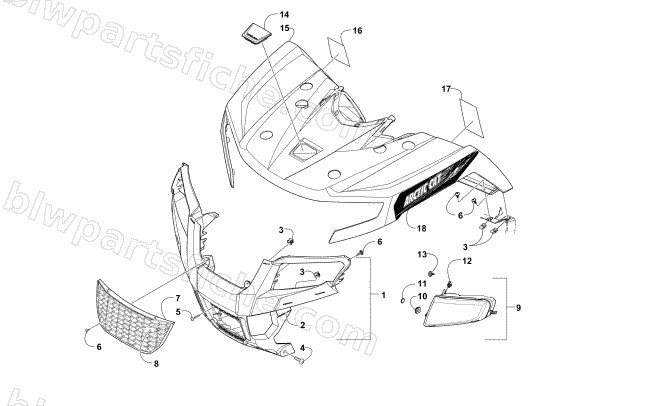

2015 Arctic Cat XR 700 LTD — FRONT BODY PANEL AND HEADLIGHT ASSEMBLIES
2015 XR 700 LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-753 | FASCIA,FRONT-W/REFLECTORS | 1 | $163.95 | |
| 2 | 4411-168 | REFLECTOR,FRONT-RH | 1 | $5.92 | |
| 2 | 4411-169 | REFLECTOR,FRONT-LH | 1 | $5.92 | |
| 3 | 1423-321 | CLIP,RETAINING | 1 | $0.54 | |
| 4 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 5 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 6 | 1423-284 | SCREW,SELF TAPPING-HIGH/LOW | 1 | $1.50 | |
| 7 | 4406-990 | GRILL,FRONT-151 ATV (13.5 mm TABS) | 1 | $20.63 | |
| 8 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 9 | 0509-104 | HEADLIGHT,LED-RH (XR LTD) | 1 | $679.95 | |
| 9 | 0509-105 | HEADLIGHT,LED-LH (XR LTD) | 1 | $679.95 | |
| 10 | 4406-722 | GROMMET-RH | 1 | $2.88 | |
| 10 | 4406-723 | GROMMET-LH | 1 | $2.88 | |
| 11 | 1423-326 | O-RING,D:.116 ID: .924-EPDM (3-912) | 1 | $2.75 | |
| 12 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 13 | 2623-113 | SCREW,1" RND KNOB-M5X0.8X15MM LG | 1 | $3.71 | |
| 14 | 4406-784 | PLUG,ACCESS COOLING | 1 | $6.89 | |
| 15 | 7506-142 | FENDER,FRONT-GLOSS BLACK-ASSY | 1 | $878.95 | |
| 16 | 4411-672 | R/B 6411-422 | 1 | $13.95 | |
| 17 | 4411-673 | DECAL,WARNING-FRONT FENDER-LH | 1 | $8.21 | |
| 18 | 4411-898 | DECAL,FRONT FENDER-ARCTIC CAT-RH | 1 | $24.77 | |
| 18 | 4411-899 | DECAL,FRONT FENDER-ARCTIC CAT-LH | 1 | $24.77 |
