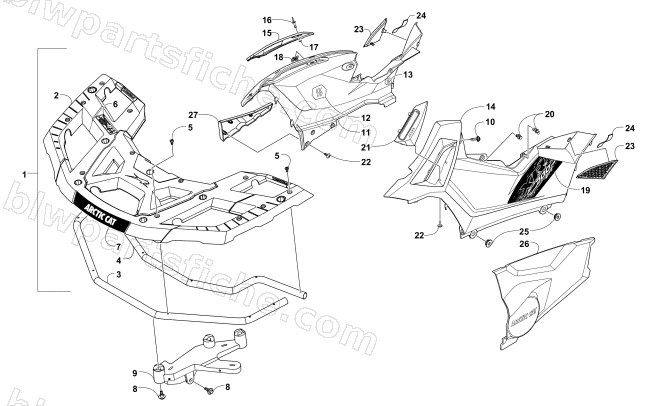

2015 Arctic Cat XR 700 LTD — FRONT RACK AND SIDE PANEL ASSEMBLIES
2015 XR 700 LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-840 | RACK-MOLDED-FRONT-ASSY | 1 | $324.95 | |
| 2 | 5506-672 | RACK,W/OVERMOLD | 1 | $224.95 | |
| 3 | 5506-671 | TUBE,RACK-OUTER PERIMETER-PTD BLK | 1 | $54.95 | |
| 4 | 5506-592 | TUBE,RACK-INNER PERIMETER-PTD BLK | 1 | $90.95 | |
| 5 | 1423-301 | SCREW,MACH-TSTRH M6-1.0X10 CL8.8 BLK W/ | 1 | $0.95 | |
| 6 | 4411-678 | DECAL,WARNING-FRONT RACK | 1 | $6.47 | |
| 7 | 4411-879 | DECAL,ARCTIC CAT-RACK | 1 | $16.49 | |
| 8 | 1423-280 | SCREW,SHOULDER-M8 X 12.7D X 12L | 1 | $3.85 | |
| 9 | 4406-626 | MOUNT,RACK FRONT-RH | 1 | $54.95 | |
| 9 | 4406-627 | MOUNT,RACK FRONT-LH | 1 | $54.95 | |
| 10 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 11 | 7506-150 | PANEL,SIDE-RH-GLOSS BLACK-PTD-ASSY | 1 | $405.95 | |
| 12 | 0412-838 | R/B 1412-108 | 1 | $62.95 | |
| 13 | 0412-852 | R/B 1412-114 | 1 | $46.95 | |
| 14 | 7506-147 | PANEL,SIDE-LH-GLOSS BLACK-PTD | 1 | $324.95 | |
| 15 | 7506-145 | PANEL,PDM ACCESS-GLOSS BLACK-PTD | 1 | $82.95 | |
| 16 | 2623-003 | STUD,1/4 TURN-16MM | 1 | $19.95 | |
| 17 | 2623-004 | RETAINER,RING-SPLIT | 1 | $4.95 | |
| 18 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 19 | 4411-896 | DECAL,SIDE-XR 700-LIME GREEN-RH | 1 | $19.25 | |
| 19 | 4411-897 | DECAL,SIDE-XR 700-LIME GREEN-LH | 1 | $24.77 | |
| 20 | 1423-276 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.23 | |
| 21 | 2402-218 | GATE,SHIFT-AUTO-W/PARK | 1 | $6.89 | |
| 22 | 1423-284 | SCREW,SELF TAPPING-HIGH/LOW | 1 | $1.50 | |
| 23 | 4406-710 | VENT,PLASTIC-RH | 1 | $4.13 | |
| 23 | 4406-711 | VENT,PLASTIC-LH | 1 | $4.13 | |
| 25 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 26 | 4406-579 | PANEL,ENGINE COVER-LH | 1 | $54.95 | |
| 27 | 4406-578 | PANEL,ENGINE COVER-RH (550/700) | 1 | $15.11 |
